PCServer330 - Additional Service Information, Checkpoint codes
Applicable to: World-Wide
Additional Service Information
The following additional service information is for the PC Server 330 Type 8640.

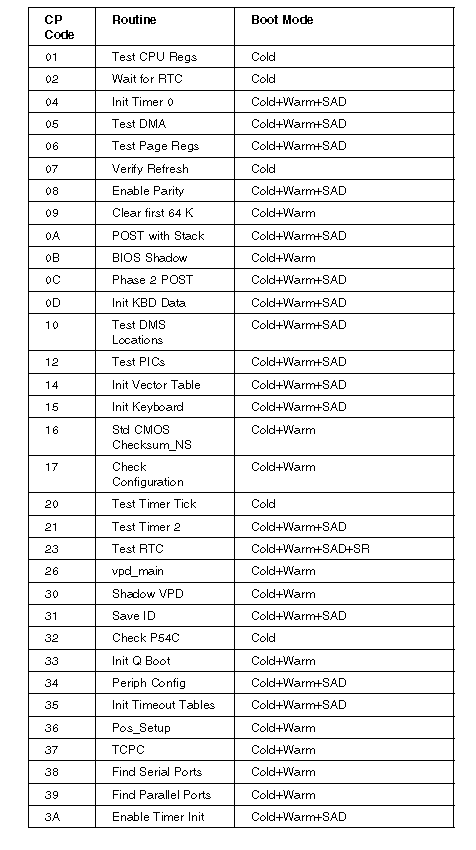

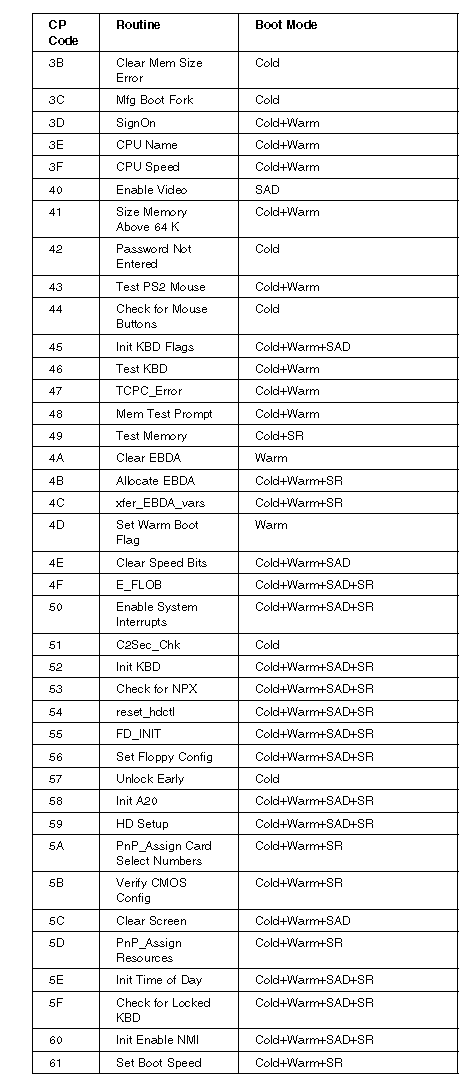

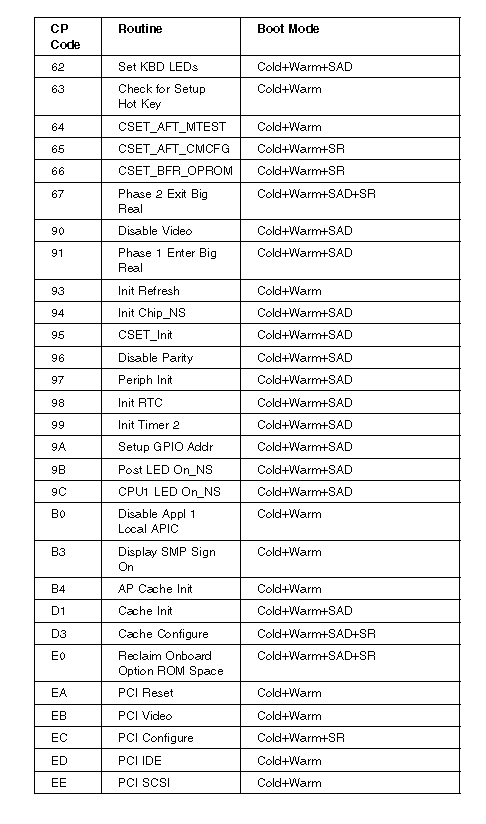

Checkpoint Codes
During POST, the computer displays the status of the components being tested in the form of Checkpoint (CP) codes in the lower right-hand corner of the screen. The following is a list of the CP codes followed by the routine in process and the boot mode.
|
