Service Hints & Tips

Document ID: BMOE-42EH62

TP 390,390E,1720 - Modem Card Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

• Battery ASM

To remove the modem card:

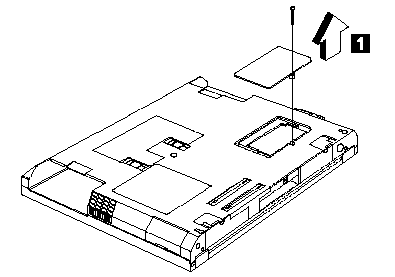

1. Use a flat-bladed screwdriver to remove the screw on the modem door.

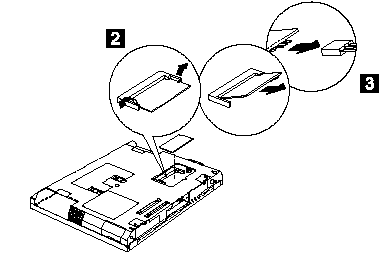

2. Carefully release the latches on both sides of the modem card.

3. Gently pull out the cable from the connector to remove the modem card.

Step	Size (Quantity)	Head & Color	Torque
1	M2 x 18L (1)	Pan head, black	2.0kgf-cm

Note: The screws do not separate from the modem board cover.

	Search Keywords
	Hint Category	Hardware Installation/Configuration
	Date Created	20-11-98
	Last Updated	23-03-99
	Revision Date	23-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 390, ThinkPad i Series 172x
	Machine Type	2626, 2627
	Model	Various
