Service Hints & Tips |
Document ID: BMOE-423QJS |
TP 390/E,1720 - Memory Checkout Guide
Applicable to: World-Wide

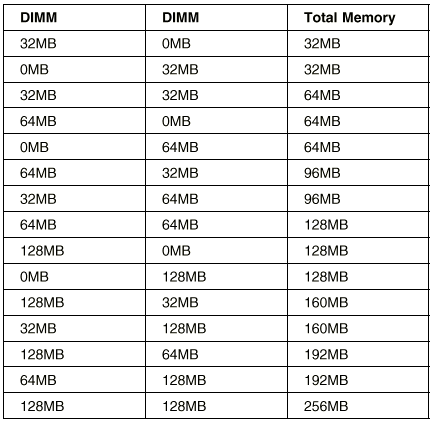

DIMM are available for increasing memory capacity.
Memory errors might stop system operation, show error messages on the screen, or hang the system.
Use the following procedure to isolate memory problems:
1. Boot from the diagnostics diskette and start the PQA program
2. Go to Memory in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
Note: Make sure that the DIMM is properly installed into the connector. A loose connection can cause an error.
|
