Document ID: DDSE-44SKNR |
3519 Rack Storage Expansion Enclosure - Voltage Setting
Applicable to: World-Wide
Attention
If you set the voltage switch to the wrong position, you might permanently damage your storage enclosure when you turn it on.

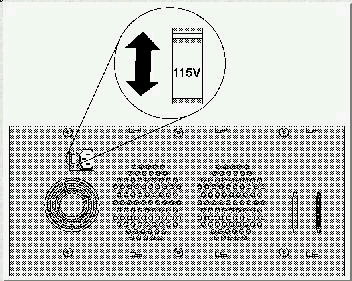

If the voltage range in your country is between 100 and 127 volts, check to see that 115 is visible. (Use the 115-volt setting in the U.S. and Canada.)
If the voltage range in your country is between 200 and 240 volts, check to see that 230 is visible.
To adjust the voltage setting, slide the switch to the correct position.
|
