Service Hints & Tips |
Document ID: LWIK-3QNENF |

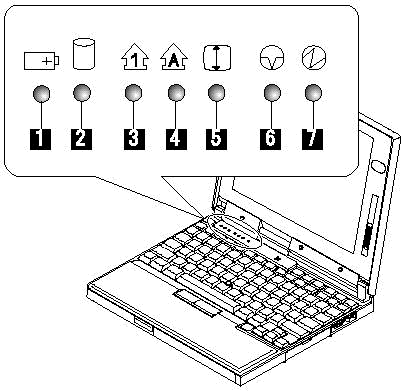

TP 560/E - Status indicator
Applicable to: World-Wide
|
Indicator |
Color |
Status |
|
1. Battery |
Green |
Battery fully charged |
|
2. Hard Disk In Use |
Orange |
Date is read from or writted to the hard disk drive |
|
3. Numeric Lock |
Green |
Numeric keypad on the keyboard is enabled |
|
4. Caps Lock |
Green |
Caps lock mode is enabled |
|
5. Scroll Lock |
Green |
Arrow keys can be used as screen-scroll function key |
|
6. Suspend Mode |
Green |
Suspend Mode |
|
7. Power On |
Green |
Power on |
|
Search Keywords |
| |
|
Hint Category |
General Information | |
|
Date Created |
12-01-98 | |
|
Last Updated |
01-04-98 | |
|
Revision Date |
13-03-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 560, ThinkPad 560E | |
|
Machine Type |
2640 | |
|
Model |
Various | |
|
