Parts Information |
Document ID: GSMH-3D3D9T |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
Notebook - CL57SX Locations
Applicable to: World-Wide
Locations:

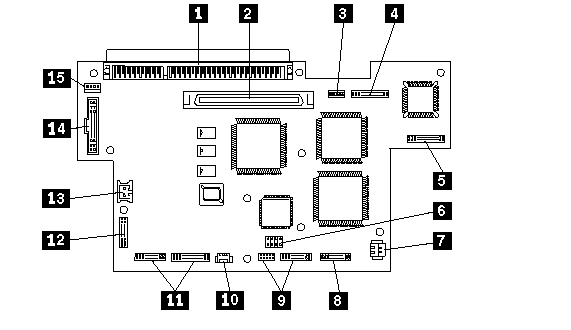

System Board:
|
1 |
System Expansion Connector (150-pin) |
|
2 |
Display Control Card |
|
3 |
Serial Connector |
|
4 |
I/O Panel (Parallel/External Input) |
|
5 |
Indicator Card |
|
6 |
Password-Override Connector |
|
7 |
Backup Battery |
|
8 |
Communication Interface (Modem/Serial) |
|
9 |
Diskette Drive |
|
10 |
Thermal Sensor |
|
11 |
Hard Disk Drive |
|
12 |
Trackball/Keyboard Card Connector |
|
13 |
Dew Point Sensor |
|
14 |
Voltage Converter |
|
15 |
Voltage Converter |
|
Search Keywords |
| |
|
Document Category |
| |
|
Date Created |
06-01-97 | |
|
Last Updated |
12-12-97 | |
|
Revision Date |
21-11-98 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
Notebook CL57SX | |
|
Machine Type |
8554 | |
|
Model |
| |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
