Netfinity 3000 - Controls and Indicators

Applicable to: World-Wide

Controls and Indicators
The most commonly used controls and status indicators are on the front of the server.

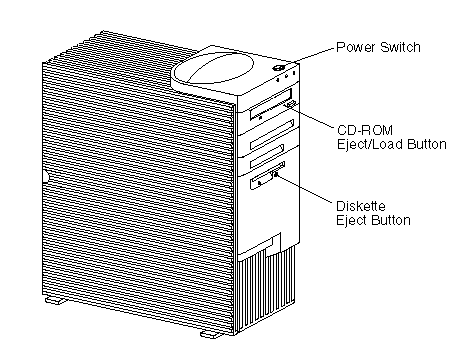

Server Controls

Power Switch: Press this switch to turn the server on or off.

Attention Do not turn off the server if a drive in-use light is on. This might damage the information stored on a hard disk or on a diskette.

When the power is on, there is a period of time during the power-on self-test (POST), a short test that occurs when the server is turned on, when a single touch of the power switch will not turn off the power. If power must be turned off during POST, press and hold the power switch for 5 seconds or disconnect the power cord. After POST, the power switch works normally, unless the server is in a hang condition. If the server is in a hang condition, press and hold the power switch until the power turns off.

CD-ROM Eject/Load Button: Push this button to release a CD from the CD-ROM drive. See "CD-ROM Drive" for additional information about the CD-ROM drive controls and indicators.

Diskette Eject Button: Push this button to release a diskette from the diskette drive.

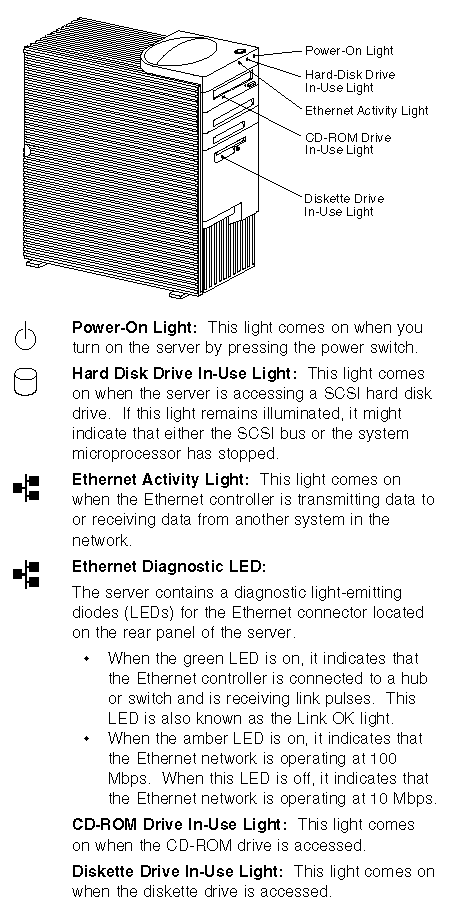

Status Indicators: The following illustration identifies the indicators located on the front of the server.
