Aptiva - 2136 Removals and replacements - RTC lithium battery
Applicable to: World-Wide
Attention: Be careful when removing the battery. If the retaining clip is broken, the system board must be replaced.
- Press the securing clip on the battery socket to release the battery.
- Flip out the battery from the socket.

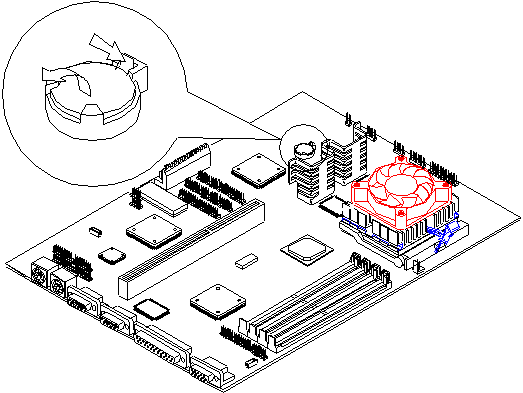

Figure 4- 23 Remove the RTC Lithium Battery
- Insert a new 3-volt(CR2032) lithium battery in the socket and press it down until the securing clip clicks and locks the battery in.
- If you replace the system battery, you need to reset the system date and time. You can perform this task from the Windows 95 desktop or from the Setup Utility. To reset the system date and time in the Setup Utility, select the Date and Time option from the Main Menu. See "Setting the Date and Time" in your hardware handbook for information about this option.
|
