Parts Information

Document ID: GSMH-3B8FXQ

TP 355,360 - FRU parts listing

Applicable to: World-Wide

Models 355x, 360x

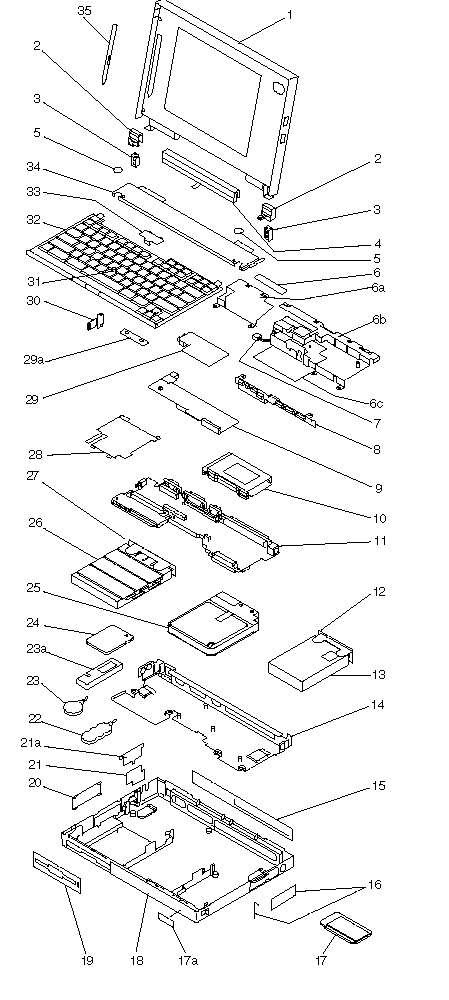

System Unit (355x, 360x):

Index

FRU PN

1

LCD Assembly (355, 360)

84G2265

LCD Assembly (355C, 360C, 360CE)

84G5719

LCD Assembly (355Cs, 360Cs, 360CSE)

84G2264

LCD Assembly (360P)

84G5721

LCD Assembly (360PE)

85G9678

2

Hinge Cover (355, 360)

84G2303

Hinge Cover (355C, 360C, 360CE)

84G5703

Hinge Cover (355Cs, 360Cs, 360CSE)

84G2258

Hinge Cover (360P, 360PE)

84G5704

3

Hinge Bracket, Right, Left

66G5057

4

Status Indicator Assembly (355)

84G2299

Status Indicator Assembly (355C)

84G5722

Status Indicator Assembly (355Cs)

84G2298

Status Indicator Assembly (360)

84G2297

Status Indicator Assembly (360C)

84G5718

Status Indicator Assembly (360Cs)

84G2251

Status Indicator Assembly (360CE)

85G2408

Status Indicator Assembly (360CSE)

85G2407

Status Indicator Assembly (360P)

84G5720

Status Indicator Assembly (360PE)

85G9646

5

Screw Cover

66G5046

6

Small Shield (355x, 360, 360C, 360Cs, 360P)

84G5860

Small Shield (360CE, 360CSE, 360PE)

84G5639

6a

Speaker Shield Assembly

84G2255

6b

Insulator

84G5705

7

Speaker (Includes speaker holder)

66G3754

8

Interposer Card (355x, 360, 360C, 360Cs, 360P)

85G0959

Interposer Card (360PE)

85G9672

Interposer Card (360CE, 360CSE)

85G2403

9

DC/DC Card

84G2253

10

PCMCIA Slot Assembly (1-slots, 355x)

84G2273

PCMCIA Slot Assembly (2-slots, 360x)

66G5121

11

System Board (355x)

84G2300

System Board (360, 360C, 360Cs, 360P)

84G2252

System Board (360CE, 360CSE, 360PE)

85G2409

12

HDD Removal Strap

66G5122

13

Hard Disk Drive (Includes strap, index 12 )

125MB

84G2271

170MB

66G5066

250MB

84G2272

340MB

66G5068

540MB

84G4319

810MB

85G0961

14

Lower Shield (355x)

84G2301

15

Rear Connector Cover (355x)

84G2304

Rear Connector Cover (360x)

84G2259

16

PCMCIA Cover
(Includes bezels and security plate)

84G2262

17

PCMCIA Device

17a

Name Labels

66G9228

18

Base Cover Assemblies include coil spring,
insulator, foot, power switch knob, holder,
latch buttons

Base Cover Assembly (355)

84G2276

Base Cover Assembly (355C)

84G5717

Base Cover Assembly (355Cs)

84G2275

Base Cover Assembly (360)

84G2274

For Benelux

84G5707

For Japan

84G5708

Base Cover Assembly (360C)

84G5711

For Benelux

84G5712

For Japan

84G5708

Base Cover Assembly (360Cs)

84G2250

For Benelux

84G5709

For Japan

84G5708

Base Cover Assembly (360CE, 360CSE)

85G2404

For Benelux

85G2405

For Japan

85G2406

Base Cover Assembly (360P)

84G5714

For Benelux

84G5715

For Japan

84G5708

Base Cover Assembly (360PE)

85G9676

For Benelux

85G9681

For Japan

85G2406

19

Bezel, Diskette Drive

84G2260

20

Cover, Option Bay

84G2261

21

Bracket, Audio Card (option)

84G2306

Bracket, Internal Modem
(Built-in for 355x, option for 360x)

84G2291

21a

Bezel, Audio Card (option)

84G2307

Bezel, Blank

84G2295

Bezel, Internal Modem
(Built-in for 355x, option for 360x)

84G2296

22

Standby Battery

66G3755

For Belgium, Dutch

66G3761

For Switzerland

66G3758

23

Backup Battery

84G2263

24

Attachment holder

84G2294

25

IC DRAM Card (See options)

See below

26

Battery Pack (Nickel Metal Hydride)

84G2146

27

Diskette Drive (3-mode)
(Includes strap, reference 28)

84G2269

28

Diskette Drive Removal Strap

66G5123

29

Base Plate

84G2293

30

Bracket Shield

84G5861

31

Internal Modem Card (See options)

See below

Audio Card (option)

66G5037

32

Fax/Audio Spacer (360x)

84G5862

33

Keyboard Lock

66G0031

34

TrackPoint II Cap

click here

35

See Keyboard List

See below

36

Leaf Spring Plate

66G0041

37

Upper Cover (355Cs, 360Cs, 360CSE)

84G2257

Upper Cover (Other models)

84G2302

38

Stylus Pen (360P, 360PE)

66G6695

EMI Spring Plate

85G0948

PCMCIA Security Plate

85G8625

AC Adapter (100 - 240 V ac, 40W, 3-pin)

49G2196

For Japan (2-pin)

49G2197

AC Adapter (100 - 125 V ac, 30W, 3-pin)
(This adapter is for U.S. only.)

84G2277

AC Adapter (35 W, 3-pin)

85G6689

For Japan (2-pin)

85G6669

AC Adapter (30 W, U.S only)

84G2277

DC Plug

85G6664

Foot (right or left)

84G4326


Keyboard:

Arabic

84G5909

Belgium

84G5907

Canadian French

84G5915

Danish

84G5906

Dutch

84G5904

Finnish, Swedish

84G5903

French

84G5900

German (Black)

84G5898

Greek

84G5913

Hebrew

84G5910

Italian

84G590

Japanese

84G5916

Latin American

84G5914

Norwegian

84G5908

Portuguese

84G5911

Spanish

84G5905

Swiss/French

84G5901

Swiss/German

84G5899

Turkish

84G5912

U.K. English

84G5897

U.S. English

84G5896

Russian

84G8348


Common/Option Parts List:
Miscellaneous Parts

AC Adapter (35 W, 3-pin)

85G1952

For Japan (2-pin)

85G6669

AC Adapter (40 W, 3-pin)

49G2196

For Japan (2-pin)

49G2197

AC Adapter (40 W, 3-pin, U.S. only)
(not for 370C)

84G4320

Foot (right or left)

84G4326

Miscellaneous Parts Kit
(Includes DC-in holder, spacer, warning label)

For Models 750x

66G5039

For Models 355x, 360x, 370C, 755C, 755Cs

84G2254

PC Card Locking Bar

85G8625

Screw Kit
(Includes:
10-2.5 x 4 mm; 10-2.5 x 6 mm
10-2.5 x 8 mm, Flat head
10-2.5 x 8 mm; 10-2.5 x 16 mm
10-hex stud I/O; 10-hex stud bus
2-washer for hex stud bus)

66G5124

IC DRAM. Eject Tape

53G9318


Options:

Notes:
1. When you replace the AC adapter or the Quick Charger witha new one, use the one for the country you are in even if the system is from different country.
2. The warranty for the system unit is not applied to all options.

Audio Cable

66G5180

Car Battery Adapter
(48G9203 label sealed)

49G1148

Car Battery Adapter
(66G9984 label sealed)

84G4359

Diskette Drive Attachment Unit

66G5069

IC DRAM 2MB

07G1414

IC DRAM 4MB

07G1415

IC DRAM 8MB

07G1416

IC DRAM 16MB

66G0094

Microphone

66G7871

PS/2 Miniature Mouse

95F5723

Port Replicator

66G3575

Port Replicator with PCMCIA

66G3574

Quick Charger (3-pin)

66G2815

For Japan (2-pin)

66G2816


Model Unique Options:

Models 355x, 360x, 370C

Basic IC DRAM. (no parity)

8MB

84G5725

4MB

84G5724

16MB

84G5726

Internal Modem Card

84G5917

(U.S./Canada/Latin America)
Telephone Cable

84G8254

(U.S./Canada/Latin America)
Telephone Wall Plug

85G2367


370

Audio Card

66G5037

Basic IC DRAM. (no parity)

8MB

84G5725

4MB

84G5724

16MB

84G5726

Diskette Drive (4-mode)
Supported in U.S. only.

66G5060


Numeric Keypad:

Belgian

95F5741

Canadian French

95F5466

Danish

95F5467

Dutch

95F5467

French

95F6313

German

95F6314

Greek

95F5467

Hebrew

95F5741

Icelandic

95F5467

Italian

95F6316

Japanese

79F6401

Norwegian

95F5467

Spanish

95F6315

Swedish/Finnish

95F5468

Swiss/French

95F5711

Swiss/German

95F5715

Turkish

95F5467

U.K. English

95F5741

U.S. English

95F5741


Accessories:

Keyboard/Mouse Cable

54G0444


Tools:

Tri-Connector Wrap Plug

72X8546

PC Test Card

35G4703

Screwdriver Kit

95F3598

ThinkPad 750Ce
Hardware Maintenance Diskette
(This diskette is common for all models of ThinkPad.)

82G3891

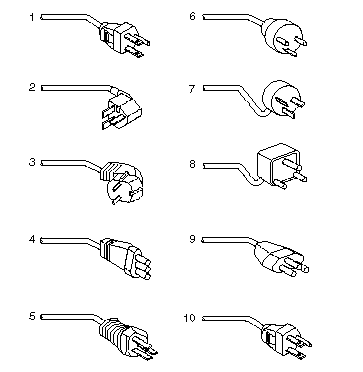

Power Cords:

Warning:
Use the power cord certified for your country.

30/40W

35W

1

Colombia, U.S., Venezuela

13F9959

25H2207

Japan, 2-pin

6454377

85G6665

Japan, 3-pin

65F0031

2

Hong Kong, Singapore, U.K.

14F0033

25H2215

3

France, Germany, Spain

13F9979

25H2209

4

Italy

14F0069

25H2223

5

Australia, New Zealand

13F9940

25H2205

6

Denmark

13F9997

25H2211

7

Israel

14F0087

25H2225

8

Bangladesh, Pakistan,Sri Lanka, South Africa

14F0015

25H22139

9

Switzerland

14F0051

25H2221

10

Thailand

1838574

25H2219


Notes:
- Models 370C, 755C, and 755Cs do not support the 30W AC adapter.
- The 30/40W cord is 6 foot long; the 35W cord is 6 inches.
