Parts Information |
Document ID: JBAR-3RBLM2 |

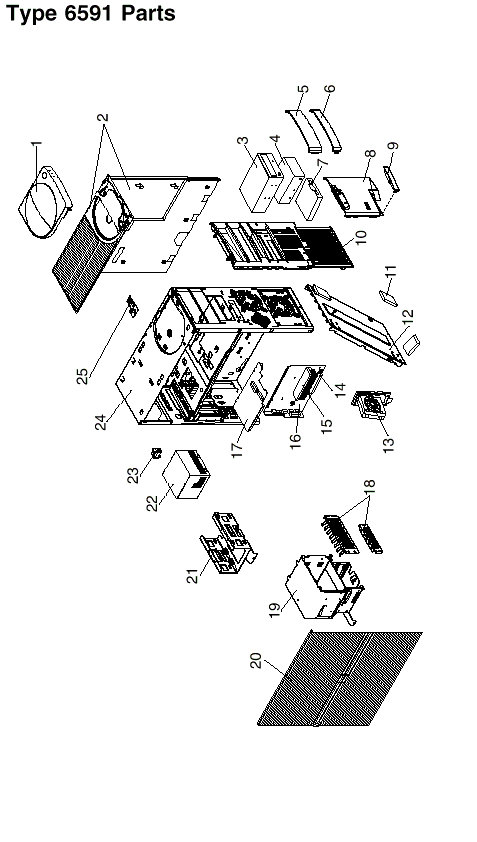

IBM PC300GL (Type 6591) - Parts diagram/FRU listing
Applicable to: World-Wide
Parts Listing:
|
Index |
System (Type 6591) |
FRU No. |
|
1 |
Handle and Cap Assembly |
12J4494 |
|
2 |
Top Cover Assembly |
12J4509 |
|
3 |
CD-ROM Drive/32X |
02K3412 |
|
3 |
CD-ROM Drive/32X (Models 74J, 75J, 76X) |
02K1115 |
|
|
Audio Cable, CD-ROM |
75H9219 |
|
|
IDE Cable, CD-ROM (1-drop) |
03K9724 |
|
4 |
2.1 GB EIDE Hard Disk Drive |
12J3141 |
|
4 |
3.2 GB EIDE Hard Disk Drive |
10L6006 |
|
4 |
4.2 GB EIDE Hard Disk Drive |
12J3143 |
|
4 |
6.4 GB EIDE Hard Disk Drive |
75H9921 |
|
|
Hard Disk Cable, EIDE |
12J4518 |
|
5 |
Miscellaneous Blank Bezel |
12J4497 |
|
6 |
Miscellaneous Optional Bezel |
12J4498 |
|
7 |
3.5-Inch 1.44 MB Diskette Drive |
75H9550 |
|
7 |
3.5-Inch 1.44 MB Diskette Drive-Japan |
75H9552 |
|
|
Diskette Drive Cable |
76H7340 |
|
8 |
Front Panel, 3.5-inch |
01K1854 |
|
9 |
Model Plate |
02K2832 |
|
10 |
Front Bezel |
12J4495 |
|
11 |
Foot (4) |
12J6294 |
|
12 |
Bottom panel |
03K9602 |
|
13 |
Fan Assembly 80 mm |
10L5501 |
|
13 |
80 mm Fan Assembly (233, 266 MHz. Proc. only) |
03K9541 |
|
14 |
Memory - 32 MB DIMM, Non-Parity |
01K1105 |
|
14 |
Memory - 64 MB DIMM, Non-Parity |
01K1106 |
|
14 |
Memory - 64 MB DIMM, ECC |
01K1126 |
|
15 |
Processor 233 MHz Pentium II |
01K2165 |
|
15 |
Processor 266 MHz Pentium II |
01K2169 |
|
15 |
Intel Celeron Processor 266 MHz., no cache |
01K4295 |
|
15 |
Intel Celeron Processor 300 MHz., no cache |
01K4463 |
|
15 |
Processor 300 MHz Pentium II ECC |
01K4291 |
|
15 |
Processor 333 MHz Pentium II ECC |
01K2167 |
|
16 |
System Board (no processor, memory -- with guide rails and shield) |
28L5021 |
|
|
Processor Support Posts |
02K2856 |
|
|
System Board Guide Rail |
01K1610 |
|
|
Lithium Battery |
33F8354 |
|
17 |
Riser Card |
61H0498 |
|
|
Riser Support Clips, Front/Rear |
02K2766 |
|
|
Cable - Wake On Ring |
08L2559 |
|
18 |
Card Guide |
03K9605 |
|
19 |
EMC Kit |
12J4508 |
|
20 |
Access Cover Assembly |
12J4493 |
|
21 |
DASD Bracket 3.5-inch/5.25-inch and 3.5-inch Drive Bracket |
03K9608 |
|
22 |
Power Supply (200W) |
75H8991 |
|
22 |
Power Supply (200W) - Japan |
76H4873 |
|
23 |
Keylock Assembly |
12J5102 |
|
24 |
Base Frame Assembly |
03K9610 |
|
|
Latch and Screw, system board |
01K1612 |
|
25 |
Power Switch/LED Cable Assembly |
12J4510 |
|
|
Audio Adapter |
01K2154 |
|
|
Wake On Ring LAN Cable |
76H7345 |
|
|
Miscellaneous Hardware Kit |
03K9603 |
|
Miscellaneous Screw Kit |
93F0041 | |
|
|
Jumper Kit |
93F0067 |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
02-02-98 | |
|
Last Updated |
30-12-98 | |
|
Revision Date |
11-11-99 | |
|
Brand |
IBM PC | |
|
Product Family |
PC 300GL | |
|
Machine Type |
6591 | |
|
Model |
All | |
|
