Service Hints & Tips

Document ID: JBAR-46HQS4

IBM PC140/PC340 - Supported memory configurations

Applicable to: World-Wide

PC 140 Series (Type 6260)/PC 340 Series (Type 6560) - Pentium 100/133/166 MHz:

• You can install a maximum of four single inline memory modules (SIMMs) in the computer.
• The system supports a minimum of 8 MB and a maximum of 128 MB of memory.
• Use only tin lead, 72-pin, 60 ns, Industry Standard EDO, non-parity SIMMs.
• Memory modules are installed in two memory banks, Bank 0 and Bank 1 (see "PC 340 Series (Type 6560) - Pentium 100/133/166 MHz system board" on page 415 of the Hardware Maintenance Manual).
• Each bank supports 4, 8, 16, or 32 MB single- or double-density SIMMs.
• Each bank used must contain a pair of SIMMs of the same size and density.
• For best performance, fill Bank 0 first.

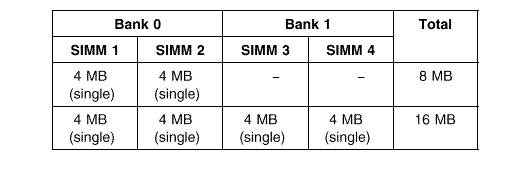

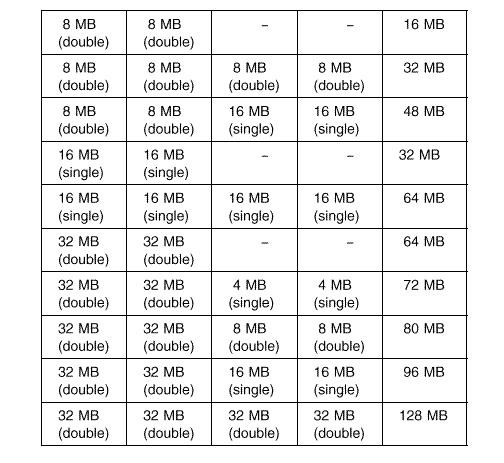

The following table shows some possible SIMM combinations and the total memory size for each combination:

Use this link to determine SIMM size, speed and type.

	Search Keywords
	Hint Category	Memory, Hardware Maintenance Information
	Date Created	31-03-99
	Last Updated	02-04-99
	Revision Date	31-03-2000
	Brand	IBM PC
	Product Family	PC 140, PC 340
	Machine Type	6260, 6560
	Model	all
