TP 765 - 1160 Modem Holder, DC/DC Card, Inverter Card
Applicable to: World-Wide
1160 Modem Holder, DC/DC Card, Inverter Card
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Rear IR (1090)
System Board Assembly (1110)
Upper Shield (1120)
External FDD Connector (1130)
Video Card (1140)

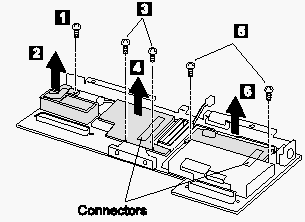

1: 2 : Module Jack
3: 4 : DC/DC Card
5: 6 : Inverter Card
|
Step |
Size (quantity) |
Memo (torque) |
|
1 |
M2.5 x 14 mm (1) |
Nylon coating(4 kgcm) |
|
3 |
M2.5 x 4 mm (2) |
Nylon coating (4 kgcm) |
|
5 |
M2.5 x 6 mm (2) |
Nylon coating (3.5 kgcm) |
Note: Do not reuse the screw that you removed. Use a new screw and tighten the screw to the torque specification shown.
When replacing:
The following figure shows the microphone cable path.
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
05-12-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 765L, ThinkPad 765D | |
|
Machine Type |
9546, 9547 | |
|
Model |
various | |
|
TypeModel |
| |
|
