TP 770 - 1190 System board and base memory removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

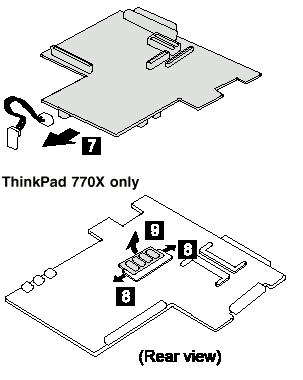

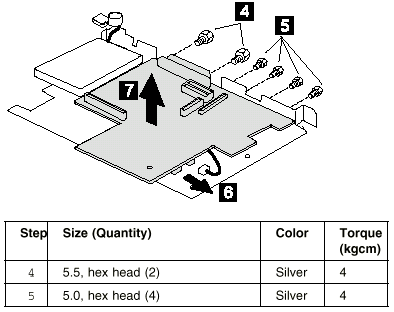

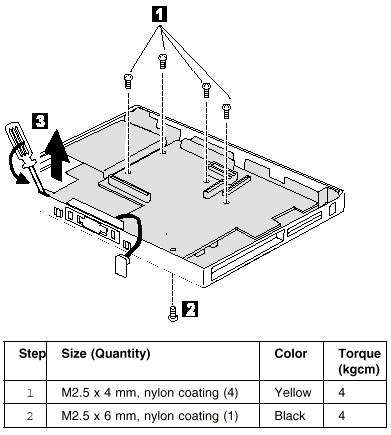

1190 System Board and Base Memory
Battery Pack (1010)
UltraBay II Device or Second Battery Pack (1020)
Hard Disk Drive (1040)
Keyboard Assembly (1060)
Center Cover and Hinge Cap (1070)
Power Switch and Bay Eject Lever (1080)
LCD Unit (1090)
Standby Battery (1100)
Upper Shield (1110)
Video Card (1130)
Modem Card (1140)
DC-DC Card (1150)
Fan (1160)
CPU Card (1170)
PC Card Slot (1180)
|
