Service Hints & Tips |
Document ID: BMOE-3XZKR2 |
TP 380Z - 2010 LCD Panel Removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1020)
Keyboard Unit (1040)
LCD Unit (1080)

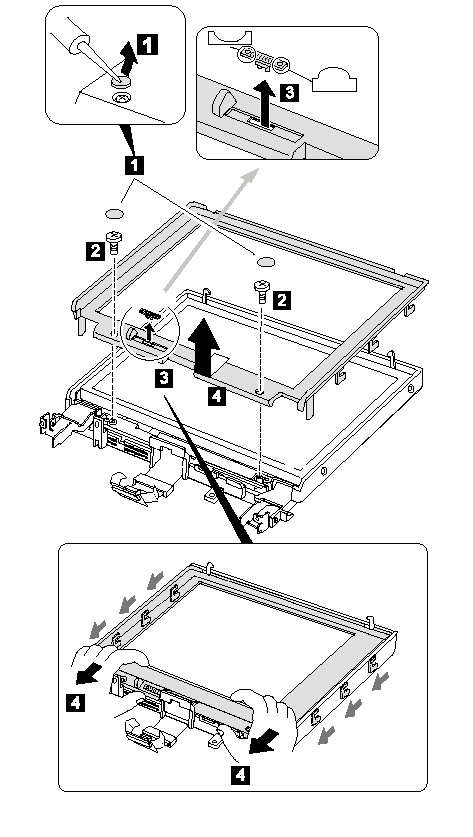

1 : Screw Covers

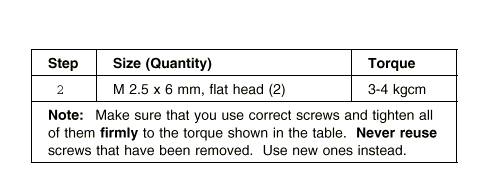

2 : Screws
3 : Brightness Control Lever
4 : Front Cover
|
