PC Server 500 - Locations (system board)
Applicable to: World-Wide

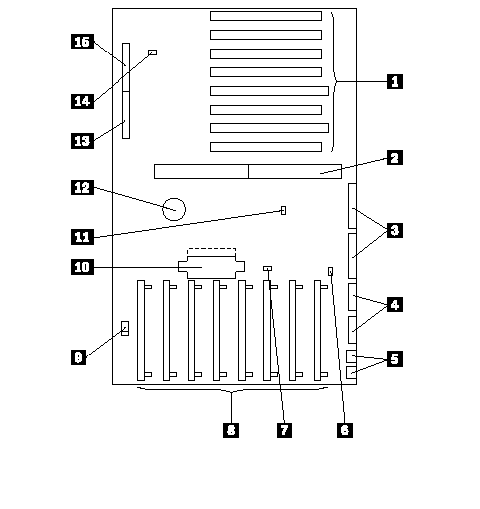

Locations (System Board)
1. 32-bit expansion slots (video extensions J25, J27)
2. Processor slot
3. Parallel ports
4. Serial ports
5. Keyboard/Pointing-device connectors
6. Power-on Features jumper
7. Privilege-access password jumper
8. Memory-module connectors
9. Tamper-evident cable connector
10. Power Supply connector
11. Override jumper connector (JMP1)
12. Battery
13. Diskette-drive cable connector
14. Reserved (Pins 1 and 2 must be connected.)
15. Operator-panel cable connector
|
