Parts Information |
Document ID: GSMH-3ANK9S |
PC Server 500 - Cables part listing
Applicable to: World-Wide
Cables (Type 8641)

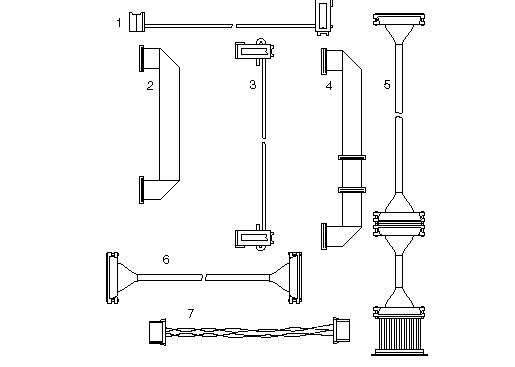

Index Cables (Type 8641)
|
1 |
DASD Status Cable |
06H5081 |
|
2 |
Planar/Control Panel Cable |
06H3406 |
|
3 |
System Status Cable (1X4) |
06H3404 |
|
4 |
Diskette Drive Signal Cable(with power) |
06H3405 |
|
5 |
CD ROM SCSI Cable (for 2 drives) |
06H3751 |
|
6 |
SCSI-Fast/Wide Cable (for 1 drive) |
82G3613 |
|
7 |
Hard Disk Drive Power Cable (for 1 drive) |
82G3610 |
|
C2 Cable (with Switch) |
82G3612 | |
|
LED Display Cable |
06H6138 | |
|
Hot Swap Flex Signal Cable |
06H6145 | |
|
POS ID Select Cable (Wide) |
06H3957 |
Index Options (Type 8641)
|
DASD Hot Swap Tray Assembly (Narrow) |
71G6292 |
|
POS ID Select Cable (Narrow) |
06H3592 |
|
220 Watt Power Supply Assembly |
06H3237 |
|
