Service Hints & Tips |
Document ID: DETR-3TARPP |
Aptiva - 2144/2168 (SL-H/I) Type 2 System board layout and locations
Applicable to: World-Wide

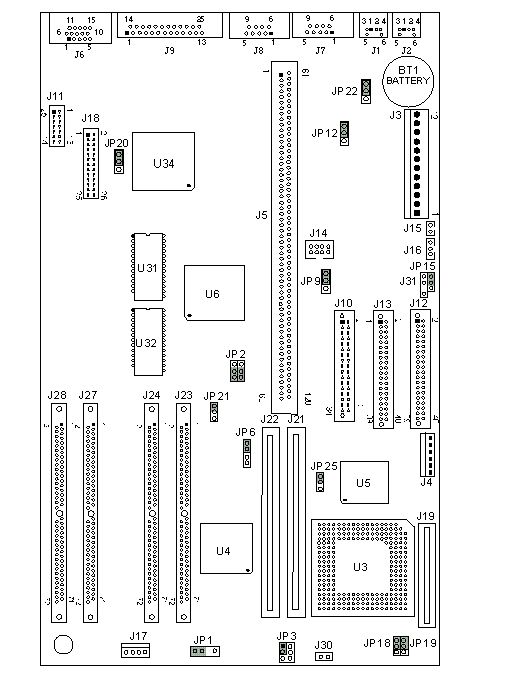

System Board Layout - Type H-2, I-2:
System Board Locations - Type H2, I -2:
|
BT1 |
Battery |
|
J1 |
Mouse connector |
|
J2 |
Keyboard connector |
|
J3 |
Power supply connector |
|
J4 |
Power supply connector |
|
J5 |
Riser Connector - ISA AT bus |
|
J6 |
Monitor signal connector |
|
J7 |
Serial Port A connector |
|
J8 |
Serial Port B connector |
|
J9 |
Parallel Port connector (Printer) |
|
J10 |
Diskette drive connector |
|
J11 |
Internal VGA video connector |
|
J12 |
Primary Hard Disk IDE (Hard Disk 1, Hard Disk 2) |
|
J13 |
Secondary Hard Disk IDE (Hard Disk 3 or CD-ROM, Hard Disk 4) |
|
J14 |
System board voltage regulator |
|
J15 |
Power Supply 2-pin connector (On/off switch) |
|
J16 |
Power Supply 3-pin connector |
|
J17 |
HDD/Power LED connector (Power: 1-2, HDD: 3-4) |
|
J18 |
VESA Video feature connector |
|
J19 |
External voltage regulator connector |
|
J21 |
Primary cache memory connector |
|
J22 |
Secondary cache memory connector |
|
J23 |
SIMM 72-pin Socket - Bank 0 |
|
J24 |
SIMM 72-pin Socket - Bank 1 |
|
J27 |
SIMM 72-pin Socket - Bank 2 |
|
J28 |
SIMM 72-pin Socket - Bank 3 |
|
J30 |
Fan +12 V dc connector |
|
J31 |
Modem wake-up on ring connector |
|
JP1 |
External speaker (Enable: 1-2, Disable: open) |
|
JP2 |
System board bus speed |
|
JP3 |
Processor speed |
|
JP6 |
Cache memory size selection (0KB or 256KB cache: 1-3, 2-4, 512KB cache: 3-5, 4-6) |
|
JP9 |
System board flash jumper (Normal: 1-2) |
|
JP12 |
Diskette Drive (FDD) write enable (Enable: 1-2, Disable: open) |
|
JP15 |
Smart Energy System SES (Enable: 2-3, Disable: 1-2) |
|
JP18/JP19 |
Processor Manufacturer (Intel: 1-2, Cyrix: 2-3) |
|
JP20 |
Regular DRAM, EDO DRAM (Normal: 1-2) |
|
JP21 |
Processor clock voltage selection (+5 V dc: 1-2, +3.3 V dc: 2-3) |
|
JP22 |
Battery/CMOS (Battery On (Normal): 1-2, Clear CMOS: open) |
|
JP25 |
Processor speed |
|
U3 |
Processor |
|
U4 |
Data buffer controller |
|
U5 |
System controller |
|
U31 |
Video DRAM module connector |
|
U32 |
Video DRAM module connector |
|
U34 |
Video controller |
|
