Servers - Understanding hard disk drive media defects
Applicable to: World-Wide
Summary
This IBM Server White Paper provides a brief description of Hard Disk Drive (HDD) design and media manufacturing. The objective is to sensitize readers to the fact that today's technology cannot create perfect media, but that through correct, thorough testing and defect management, the problem is often transparent to end users.
IBM Server White Paper
Date: December 1997
Note : This document is intended for the general audience.
One of the most critical components of IBM Servers is the Storage Subsystem which includes the RAID controller and the Hard Disk Drives (HDD). Typical HDD capacities found in today's IBM Server Systems range from 2.25GB to 9.1GB (1Giga Byte = 1 Billion bytes). RAID 5 and RAID 1 architecture technology provides the ability to continue operation in the event of HDD failures and provides the ability to rebuild lost data. Although HDD reliability has greatly improved in the past five years, the areal densities (defined below) have grown at a staggering 60% compound growth rate during that same time.
Due to the complexity of HDD's and the nature of the technology, media defects are a fact of life in ALL HDD's manufactured today. However, HDD's employ effective error correction techniques and data threshold analysis and reassignments to help prevent data loss. This paper will explain the reason why media defects occur initially and why they may occur throughout the life of the drive.
Topics included in this paper:
- Brief description of HDD's
- Media Manufacturing
- HDD Manufacturing defect mapping
- HDD defect management
- Summary
Brief description of Hard Disk Drives (HDD'S)
An HDD is a very complex electromechanical device which employs many technologies. It is comprised of the HDA (Head Disk Assembly) and the PCB (Printed Circuit Board). For the purpose of this paper, we will concentrate on the HDA.
The HDA consists of a spindle motor, disks (the media) , Read\Write heads, an actuator to move the head assembly (Head Stack) to the target data block, all contained within a sealed enclosure. The data is written onto rotating disks which are magnetically treated. The rotational speed for Server HDD's ranges from 5400RPM to 10000RPM with the majority of drives used today being at 7200RPM.
While the disk rotates, the Read\Write heads fly above the disk. The fly height is typically 1.8 to 2 micro inches (and getting lower as technology progresses). As a comparison, a human hair is 3000 micro inches (a micro inch is one millionth of an inch). The actuator moves the head stack assembly (up to 20 heads may be installed in a head stack assembly) onto the desired location (track) to write or read the data. The disk is segmented radially into tracks and each track is made up of sectors. The sector is the least addressable unit on the disk drive - this is where the data reside. A sector is 512 bytes long. So a 4.5GB drive will contain 8,789,062 sectors. In reality, disk drives have many more sectors than the stated capacity.
This is because perfect media (the disks) are not possible with today's technology. Thus, in the manufacturing process, some sectors are found to be unusable (deficient magnetic coating, pits, etc.), and are reassigned to spare sectors somewhere else on the drive. The drive will have the advertised capacity when leaving the factory as well as throughout the life of the drive.
The amount of data that can be stored on a disk is a measure of it's areal density - defined as the number of data bits stored on the disk per square inch. Thus a typical 4.5GB drives has an areal density of .8Gbits to 1Gb per square inch. In the next 5 years drives will reach areal densities of greater than 5Gb/sq. inch (IBM Almaden research has already demonstrated 5Gb/sq inch in a laboratory environment). In order to achieve these densities, improvements in head and media technologies have to occur. The advent of MR (Magneto Resistive) and GMR (Giant MR) heads as well as improvements in media have paced the advances in areal densities. In order to understand why media defects can occur a brief overview of media manufacturing is presented below.
Media Manufacturing
An ideal storage disk will have no imperfections and store data for an indefinite amount of time. The latter is theoretically achievable with today's magnetic materials assuming the environment within the HDA does not change - that there is no contamination or malfunction of components within the disk enclosure. The former is not possible today but is often manageable.
The data is recorded onto the disk from signals emanating from the head transducer. A recorded region is called a bit cell. For an areal density of 1Gb/sq inch, the size of a bit cell is 1 billionth of a square inch. A 3.5" 1Gb/sq. inch disk can have in excess of 4 billion bit cells per surface. In order to achieve these staggering numbers, strict manufacturing processes and advances in magnetic materials are required.

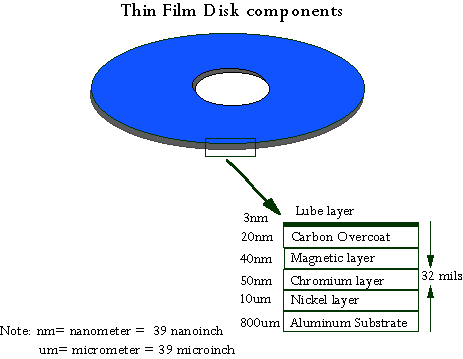

A disk is defined as a thin film medium. That is multiple thin film layers of various materials are deposited onto the disk through a sputtering process. The general structure of a disk is shown below. The substrate on which the magnetic and other materials are deposited is always aluminum for 3.5" HDD's (glass substrates are used for 2.5" drives to improve shock characteristics).
Prior to material deposition which is performed in a clean room environment, the aluminum substrate is machined sized and ground to an acceptable finish. As can be seen in the diagram multiple layers of various materials are required to manufacture disks.
Each step of this process can introduce imperfections in the media. An imperfection the size of a bit cell will therefore prevent the cell from having the appropriate magnetic properties; thus a media defect is created. It is possible that the imperfection may encompass more than one bit cell and cause additional media defects.
Another source of media defects is through the HDD manufacturing process. Although extreme precautions are taken in the handling of disks, some microscopic scratches can occur as disks are mounted onto the motor spindle hubs and the head stack assemblies are merged onto the media. In certain cases contamination during the drive build process can also cause particles to be deposited onto the media and cause latent defects.
Although defects are inevitable, HDD test processes can map them out prior to leaving the factory. However, some latent defects may not be detectable initially and may translate into inaccessible sectors in the field.
HDD Manufacturing Defect Mapping
Defect mapping is performed during the manufacture of the HDD. A Surface Analysis Test is performed whereas the disk is written repeatedly with stressed data patterns and subsequently read back. Any sectors that cannot be read back successfully are removed from the sector map. A list of bad sectors is kept within the drive (called the P-list). After the SAT, the drives are subjected to a final test which may uncover additional media defects. Those sectors are also mapped out and the P list adjusted. Additional testing is performed during System Manufacturing to detect any defects which may have not been mapped out by the HDD manufacturer (unlikely) or which may have "grown" due to latent media defects. (possible). Defect discovery at System Manufacturing is rare but is nevertheless performed to ensure that the drives are defect free when shipped to our customers. As drives are used in the field, grown defects can continue to occur due to many circumstances: latent imperfection on the disk, media damage due to mishandling of the drive and harsh environments. However, these defects can be reallocated by the drive to available spare sectors in the drive.
HDD Defect Management
HDD's employ sophisticated defect management techniques to prevent data loss and promote data integrity. Earlier it was stated that there are many more sectors available in the drive beyond the drive advertised capacity. Typically each track has an additional sector beyond the required number of sectors and a drive may have thousands of spare sectors available. Those sectors are used in the event that a data sector becomes defective. In the case of defective sectors, the data is recovered (if possible) and rewritten onto the spare sector. The new sector is now part of the drive sector map and no loss of capacity or data has occurred. Data errors can be classified as soft errors and hard errors. Soft errors are recoverable. That is if the data was not read properly initially, the Error Recovery Procedures (ERP) of the drive can recover the data. ERP algorithms are very sophisticated and involve hardware correction (ECC on the fly - Error Correction Code), multiple reread of the data, track offset reading and application of firmware ECC. During the ERP process, the drive will determine if the sector requires reassignment to a spare sector. If so, the spare sector is identified and the data moved to that sector. If the data is unrecoverable it is a Hard error and the sector is no longer accessible. In this case data recovery and rebuild is done through the RAID subsystem.
Summary
This paper provided a brief description of HDD design and media manufacturing. The objective is to sensitize readers to the fact that today's technology cannot create perfect media, but that through correct, thorough testing and defect management, the problem is often transparent to end users. Latent media errors may not be detected in seldom-used files or in not-yet-used sectors and will only be identified if data is written/read to/from those sectors. Data Scrubbing accomplishes this task in the background while allowing concurrent user disk activity. Data Scrubbing is recommended by IBM and described in "Using IBM RAID Adapters to Avoid Data Loss," another IBM Server White Paper referenced in the ADDITIONAL INFORMATION section under White Papers.
