Service Hints & Tips

Document ID: GCOR-38ZL6M

Aptiva - Zip drive jumper settings

Applicable to: World-Wide

Zip Drive:
The factory installed Zip 100 ATA/IDE drive is connected to the system board secondary drive connector. The Zip drive is a direct access storage device that features removable media having a formatted capacity of 100 MB.

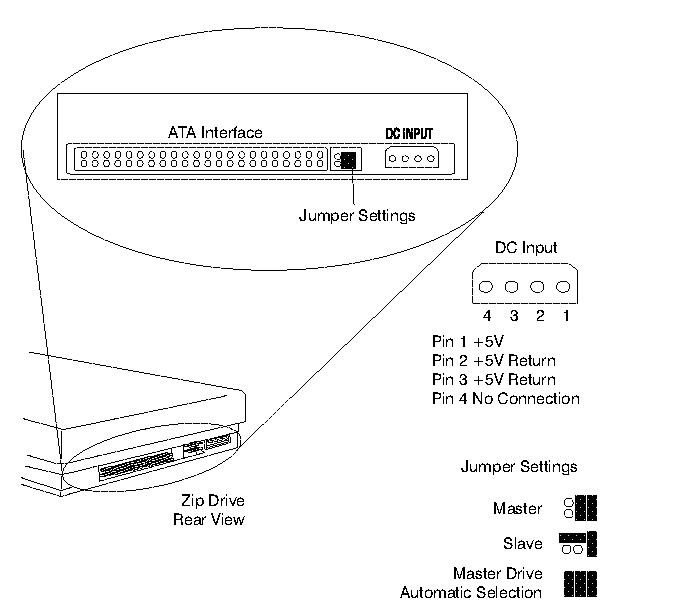

The Zip Drive jumper is set as the master drive, as shown in Figure 1-23.

Zip Drive Jumper Settings


Search Keywords

Hint Category

ZIP Drives, Jumper/Switch Settings

Date Created

27-08-96

Last Updated

15-03-99

Revision Date

15-03-2000

Brand

IBM Aptiva

Product Family

Aptiva

Machine Type

2134, 2176
