Aptiva - 2136 Hard disk drive jumper settings 5.25"
Applicable to: World-Wide
5.25 Hard Disk Drive Jumper Location Layout

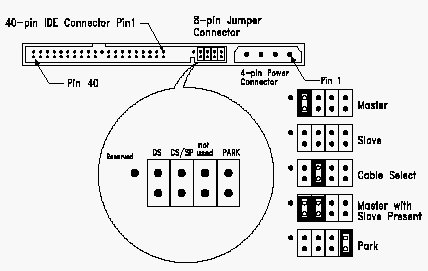

Figure 5- 10 5.25" Hard Disk Jumper Layout
The configuration of the following four jumpers controls the drive's mode of operation:
DS - Drive Select
CS/ SP - Cable Select / Slave Present
PARK - Used as a place to store a jumper
5.25" Hard Disk Drive Jumper Settings
Table 5-9 5.25" Hard Disk Drive Jumper Settings
|
DS |
CS/SP |
DESCRIPTION |
|
On |
Off |
Drive configured as a Master. |
|
Off |
Off |
Drive configured as a Slave. |
|
On |
On |
Drive configured as a Master, with an attached Slave. |
|
