TP 760LD - FRU parts listing
Applicable to: World-Wide

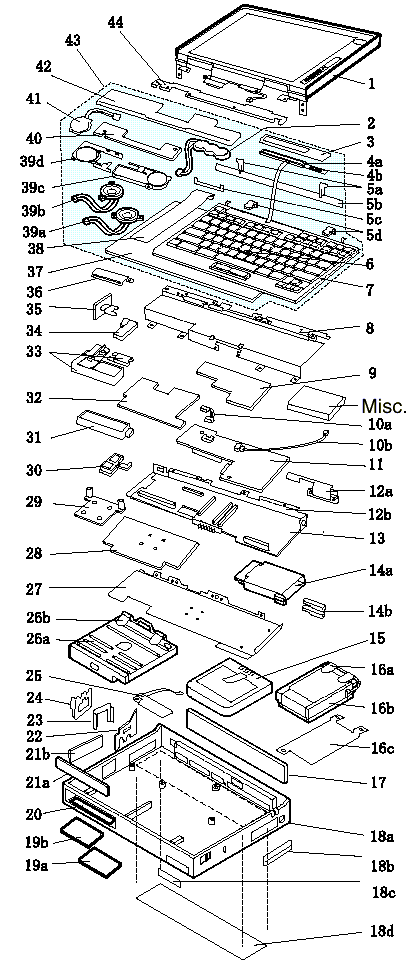

Parts Listing :
Model 760LD
|
Index |
Part (760LD) |
FRU |
|
1 |
LCD Assembly (10.4 TFT) |
46H5355 |
|
2 |
Standby Battery |
29H9497 |
|
3 |
LCD Indicator Assembly Cover |
69H8403 |
|
4a |
LCD Indicator Assembly |
29H9220 |
|
4b |
Volume Knob |
69H8404 |
|
5a |
See Keyboard Misc. Parts | |
|
5b |
Keyboard Foot |
39H7038 |
|
5c |
Keyboard FPC Bracket |
39H7035 |
|
5d |
See Keyboard Misc. Parts | |
|
6 |
TrackPoint III Cap |
|
|
7 |
Keyboard (See Keyboard Section) | |
|
8 |
Upper Shield Case |
29H9213 |
|
9 |
Video Card |
46H5318 |
|
10a |
Volume Connection Cable |
29H9211 |
|
10b |
Mic Connection Cable |
29H9210 |
|
11 |
ESS Card |
46H5353 |
|
12a |
External Diskette Drive Connector |
29H9203 |
|
12b |
Rear Shield Case |
29H9201 |
|
13 |
System Board |
29H9199 |
|
14a |
PC Card Slot |
39H7019 |
|
14b |
Eject Button |
39H7018 |
|
15 |
Battery Pack(Ni-MH) |
29H9233 |
|
16a |
HDD Removable Strap |
29H9236 |
|
16b |
Hard Disk Drive (810 MB, 12.7 mm) |
29H9366 |
|
16c |
EMI Sheet |
39H7031 |
|
17 |
Rear Connector Door |
29H9186 |
|
18a |
Base Cover |
46H5359 |
|
18b |
PC Card Door |
29H9238 |
|
18c |
Name Label |
66G9228 |
|
18d |
Thermal Rubber Sheet |
69H8429 |
|
19a |
DIMM Cover |
69H8422 |
|
19b |
DIMM Adapter Card |
29H9296 |
|
20 |
Lower Spacer |
29H9194 |
|
21a |
CD-ROM Blank Bezel |
29H9289 |
|
|
Diskette Drive Bezel |
29H9197 |
|
21b |
Option Cover |
29H9193 |
|
22 |
AV Cover |
29H9190 |
|
23 |
Modem Cover Lock |
39H7027 |
|
24 |
Modem Cover |
39H7029 |
|
|
Blank Cover for EMEA |
29H9188 |
|
25 |
Front IR Assembly |
29H9215 |
|
26 |
CD-ROM Drive |
39H7424 |
|
27 |
Lower Shield |
29H9202 |
|
28 |
CPU Card (90 MHz, Pentium) (U.S.-9547, model U31, U3A, U3R) |
29H9198 |
|
|
CPU Card (120 MHz, Pentium) |
29H9297 |
|
29 |
Heat Sink (Pentium 90MHz) (U.S.-9547, model U31, U3A, U3R) |
39H7005 |
|
|
Heat Sink (Pentium 120MHz) |
39H7006 |
|
30 |
See Misc. Parts | |
|
31 |
Modem Bracket Assembly |
46H5360 |
|
32 |
DC/DC Card |
83H5375 |
|
33 |
See Misc. Parts | |
|
34 |
Power Switch Actuator |
29H9209 |
|
35 |
Power Switch Button |
29H9192 |
|
36 |
Rear IR Assembly |
29H9214 |
|
37 |
Keyboard Base |
29H9218 |
|
38 |
Keyboard Cable |
29H9222 |
|
39a |
Speaker (right) |
29H9225 |
|
39b |
Speaker (left) |
39H6983 |
|
39c |
Speaker Holder (right) |
39H7033 |
|
39d |
Speaker Holder (left) |
39H7034 |
|
40 |
Keyboard Card |
29H9221 |
|
41 |
Backup Battery |
29H9506 |
|
42 |
Palm Rest |
29H9219 29H7032 |
|
43 |
Keyboard Unit (See Keyboard Unit Section) | |
|
44 |
Top Cover |
29H9184 |
|
|
Diskette Drive (3-mode) |
29H9230 |
|
|
Diskette Drive (4-mode, Japan) |
29H9372 |
|
|
Diskette Drive Removable Strap |
29H9237 |
|
|
Wall Plug |
85G2367 |
|
|
Microphone |
66G7871 |
|
|
AC Adapter (35W) |
85G6701 85G6699 |
|
|
Keyboard Misc. Parts |
39H7039 |
|
|
Misc. Parts |
46H5367 |
Keyboard Assembly
|
Arabic |
29H9076 |
|
Belgian |
29H9074 |
|
Canadian French |
29H9082 |
|
Czech |
29H9292 |
|
Danish |
29H9073 |
|
Dutch |
29H9071 |
|
French |
29H9067 |
|
German |
29H9065 |
|
Greek |
29H9080 |
|
Hebrew |
29H9077 |
|
Hungary |
29H9291 |
|
Italian |
29H9069 |
|
Japanese |
29H9083 |
|
New World Spanish |
29H9081 |
|
Norwegian |
29H9075 |
|
Portuguese |
29H9078 |
|
Polish |
29H9290 |
|
Russian |
29H9084 |
|
Slovak |
29H9293 |
|
Spanish |
29H9072 |
|
Swedish or Finnish |
29H9070 |
|
Swiss |
46H5989 |
|
Turkish |
29H9079 |
|
U.K. English |
29H9064 |
|
U.S. English |
29H9063 |
Keyboard Unit
|
Arabic |
29H9408 |
|
Belgian |
29H9406 |
|
Canadian French |
29H9414 |
|
Czech |
39H6978 |
|
Danish |
29H9405 |
|
Dutch |
29H9403 |
|
French |
29H9399 |
|
German |
29H9397 |
|
Greek |
29H9412 |
|
Hebrew |
29H9409 |
|
Hungary |
39H6977 |
|
Italian |
29H9401 |
|
Japanese |
29H9415 |
|
New World Spanish |
29H9413 |
|
Norwegian |
29H9407 |
|
Portuguese |
29H9410 |
|
Polish |
39H6976 |
|
Russian |
29H9416 |
|
Slovak |
39H6979 |
|
Spanish |
29H9404 |
|
Swedish or Finnish |
29H9402 |
|
Swiss |
46H5990 |
|
Turkish |
29H9411 |
|
U.K. English |
29H9396 |
|
U.S. English |
29H9395 |
|
