PC Server 330 - Configuration
Applicable to: World-Wide
Configuration
The process of allocating server resources to organize and interconnect hardware devices and software programs is referred to as configuration. The steps required to configure the server depend on the number and types of devices and programs installed.
The server supports the following type of adapters.
Peripheral Component Interconnect (PCI)
Industry Standard Architecture (ISA)
Small Computer System Interface (SCSI)
In general, the greater the number and variety of hardware devices and software programs installed in the server, the more you will have to interact with the server and the devices to correctly configure the system.
The server comes with the following hardware configuration utility programs:
The built-in Configuration/Setup utility program configures system board functions, such as serial and parallel port assignments, change interrupt requests settings, and the startup sequence for drives installed in the system. You can also use this utility program to set passwords for starting up the server and accessing the Configuration/Setup utility program. The SCSISelect utility program can be used to configure the SCSI devices, changes default values, resolve configuration conflicts, and perform a low-level format on a SCSI hard disk drive.
The following actions are typically, but not always, required to configure the server.
1. Run the Configuration/Setup utility program and record the current configuration settings.
2. Set jumpers or switches on the server's system board. See "Jumpers - System Board".
3. Set jumpers or switches on the device. Refer to the device installation instructions.
4. Install the device in the server.
If you install an ISA adapter that is not a Plug and Play device, use the Plug and Play choice on the Configuration/Setup utility programs main menu to set the ISA legacy resources. These include memory, I/O ports, direct memory access (DMA), and interrupt request levels (IRQs). See "Plug and Play" for more information.
5. Install software programs. Refer to the installation instructions that come with the software.
6. Resolve configuration conflicts. See "Resolving Configuration Conflicts".
Configuration/Setup Utility: For most configurations, the server will operate using the default system settings. You need to change the settings only to resolve configuration conflicts or to enable or change device functions (for example, enabling the infrared port).
After you run and exit the Configuration/Setup utility program, configuration information is stored in nonvolatile RAM (NVRAM). The configuration information remains available for the next system startup while the server is powered off.
Always run the Configuration/Setup utility program if you added or removed any hardware option or receive an error message instructing you to do so.
Starting the Configuration/Setup Utility Program: To start the Configuration/Setup utility program:
1. Power-on the server and watch the screen.
2. When the message Press F1 to enter Configuration/Setup appears, press F1.
The Diagnostic/Setup Utility menu appears.
Note
If you entered a power-on password and an administrator password has been set, the menu does not display. Instead, the server displays the Configuration/Setup Utility menu.
To configure the server, select Configuration/Setup Menu.
The Configuration/Setup Utility Main Menu appears. For information about the menus, see Configuration/Setup Utility Main Menu.
To run the system diagnostics, select Diagnostics. (For information on running the system diagnostics, see "About the Test Programs".)

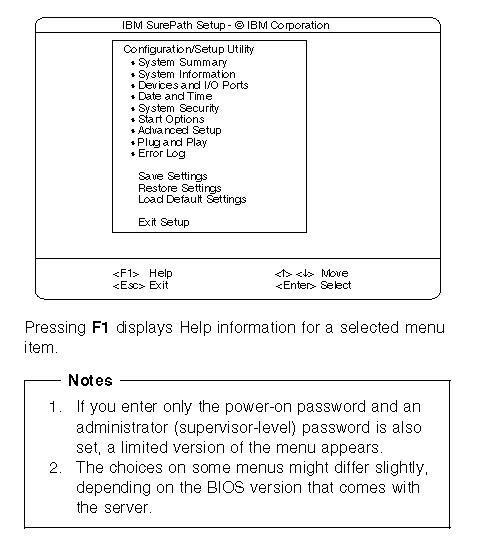

Configuration/Setup Utility Main Menu: The Configuration/Setup utility program Main Menu lets you select settings you want to change.
To change configuration settings:
1. Use the Up Arrow or Down Arrow keys to select the menu item for the configuration setting you want to change. Selected items are highlighted. Then press Enter.
2. Select the configuration setting you want to change. Use the Page Up (PgUp) and Page Down (PgDn) keys to scroll through the menu, if needed.
3. Use the Right Arrow or Left Arrow keys to select the appropriate setting for the selected item.
4. Repeat Steps 1 through 3 for each setting you want to change. Press Esc to return to the Configuration/Setup Main Menu.
5. After making changes, you can select Save Settings to save the selected changes. Restore Settings to delete the changes and restore the previous settings. Load Default Settings to cancel the changes and restore the factory settings.
6. To exit from the Main Menu, select Exit Setup. The system prompts you to confirm your choice. You can return to the Main Menu, or save your changes and exit, or exit without saving your changes; the Diagnostic/Setup utility menu displays.
|
Note |
7. Press Esc to exit from the Diagnostic/Setup utility menu and restart the server.
System Summary: Select this choice to display configuration information, such as the type and speed of the microprocessor, and amount of memory.
Changes made to configuration settings appear on this summary screen. You cannot edit the fields.
The System Summary choice appears on the full Configuration/Setup menu and on the limited Configuration/Setup user's menu.
Product Data: Select this choice to view system information such as the machine type and model, the system serial number, the system board identifier, and the revision level or issue date of the flash electronically erasable programmable ROM (EEPROM) and BIOS.
System Information: Select this choice to display information about the PC Server 330, and to view the interrupt request (IRQ) settings for the SCSI and Ethernet controllers on the system board, and other PCI adapters installed in the server.
Changes that you make on other menus might appear on this summary screen. You cannot edit any fields.
The System Information choice appears only on the full Configuration/Setup menu.
PCI Routing: Select this choice to view the settings for interrupt requests for PCI adapters. In addition, you can view the interrupt requests for the Ethernet and SCSI controllers on the system board.
Devices and I/O Ports: Software recognizes ports from their port assignments. Each port must have a unique port assignment. The Configuration/Setup utility program normally handles this, but you might have special hardware or software that requires you to change these assignments.
Select the Devices and I/O Ports choice to view or change the assignments for devices and input/output ports.
You can add serial ports by installing a serial adapter in an expansion slot. See the documentation that comes with the serial adapter for information about port assignments.
The parallel port can be configured as bidirectional, that is, data can be both read from and written to a device. In bidirectional mode, the server supports Extended Capabilities Port (ECP) and Enhanced Parallel Port (EPP).
The server supports a wide assortment of monitors. Because characteristics of monitor types vary, you should review the documentation that came with the monitor to determine the monitor type and refresh rate.
Notes
When you configure the parallel port as bidirectional, use an IEEE 1284-compliant cable. The maximum length of the cable must not exceed 3 meters (9.8 feet).
To display or change the assignments for devices, or the infrared, serial, or parallel ports:
1. Select Devices and I/O Ports.
2. Select a device or port; then, use the Left Arrow and Right Arrow keys to advance through the settings available.
The Devices and I/O Ports choice appears only on the full Configuration/Setup menu.
Date and Time: Select this choice to set the system date and time.
The system time is in a 24-hour format: hour/minute/second. The system date is in standard format for the country. For example, in the United States, the format is MM/DD/YYYY (Month/Day/Year).
Select Date and Time, then use the Left Arrow and Right Arrow keys to advance through each data field. Type the new information; the system saves the information as you type it.
The Date and Time choice appears only on the full Configuration/Setup menu.
Alarm/Wakeup Settings: The server can be started manually or at a predefined event. The server enters one of the following states.
Standby mode
The server is powered down. The automatic restart feature, which enables the server to restart following a momentary power loss, means that the server is never completely powered off.
The server must be in the Standby mode (off) for the Alarm/Wakeup Settings features that you define to take effect.
Attended mode
This is the on state that occurs when you press the power switch from the Standby or Unattended mode. The Power-On light comes on whenever the server is on.
Unattended mode
The server starts at a specified date and time, or when it receives a signal from either serial port. When the server powers on in the Unattended mode, the Unattended Power-On light and the Power-On light come on.
|
Note |
Select the Alarm/Wakeup Settings choice to enable and disable the Unattended mode.
|
Notes |
The Alarm/Wakeup Settings choice appears only on the full Configuration/Setup menu.
Wakeup Timer: With this option, you can specify a time and date when the server will power-on automatically.
To set the Unattended mode, select Alarm/Wakeup Settings, then select Wakeup Timer. Then, set or change the settings. Select Wakeup Date to specify a date up to 31 days away. Select Wakeup Time to specify the time, using a 24-hour clock format.
Wakeup on Ring: When this option is enabled, the server will power-on automatically when it receives a signal from serial port A or B.
Configuring the Ethernet Controller
The 10/100 Mbps Ethernet controller on the system board provides an efficient, high-speed interface to an Ethernet network. The controller dynamically detects the transmission speed of the network traffic, and automatically adjusts conditions for full-duplex or half-duplex operation.
You can configure the Ethernet controller to remotely wake up or power up computers in the network for administrative and maintenance tasks. For example, you can install and update software at night, minimizing the inconvenience to users on the network.
If you need additional Ethernet connectors, you can install an Ethernet adapter, such as the IBM PCI Ethernet adapter. Refer to the documentation that comes with the adapter for configuration information.
|
Note |
Removing an Unknown Power-on Password
When a power-on password is set, the POST does not complete until you enter the password. If you forget the power-on password, you can regain access to the server in the following ways:
Enter the administrator password at the power-on prompt. Start the Configuration/Setup utility programs and change the power-on password. See "Using the Power-on Password Menu".
Follow the instructions in "Removing the Power-On Password When Keylock is Installed."
Removing the Power-On Password When Keylock is Installed
|
Before you begin |
1. Locate the Clear CMOS jumper (J23, pin 7).
2. Verify that the keylock is connected to the system board. If no keylock is installed, go to "Removing the Power-On Password When Keylock Is Not Installed."
3. Add a jumper to pins 2 and 3 (the pins furthest away from the microprocessor board).
4. Replace the server cover and reconnect all external cables and power cords.
5. power-on the server; then, close and lock the server door.
6. Power-off the server, and remove the cables.
7. Remove the jumper from jumper J23-7; if you moved the jumper earlier, replace it in its original position.
8. Replace the server cover and reconnect all external cables and power cords.
9. Power-on the server and use the Configuration/Setup utility programs to enter a new password and reconfigure the server.
Note: The administrator password is not affected by this jumper.
Removing the Power-On Password When Keylock Is Not Installed
|
Before you begin |
1. Locate the battery on the system board.
2. Use one finger to lift the battery clip over the battery.
3. Use one finger to slightly slide the battery out from under the battery clip. (The spring mechanism behind the battery will push it out toward you as you slide it forward.)
4. Use your thumb and index finger to pull the battery from under the battery clip.
5. Ensure that the battery clip is touching the base of the battery socket by pressing gently on the clip.
6. Reinstall the battery:
a. Lift the battery clip.
b. Tilt the battery and slide it under the battery clip.
c. As you slide the battery under the clip, press the battery into the socket.
7. Reinstall the server cover and complete the installation.
8. Start the Configuration/Setup utility program and reset the configuration parameters as needed (see "Configuration/Setup Utility Main Menu").
|
