TP 560/E - 1090 PCMCIA Slot Assembly
Applicable to: World-Wide
1090 PCMCIA Slot Assembly:
Battery Pack (1030)
Keyboard Unit (1050)
|
Note: |
Before removing and replacing the PCMCIA slot assembly, |
|
make sure that the PCMCIA cards are removed and the eject levers are not sticking out. |
|

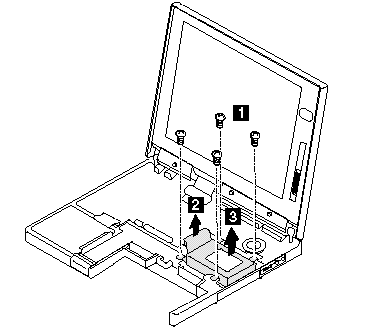

Step |
Length (Quantity) |
Torque |
|
1 |
7 mm, nylon coating (4) |
4.0 kgcm |
|
Note: |
Do not use the screw that you have removed. |
|
Use a new screw and tighten the screw to the torque specification shown. |
|
