Service Hints & Tips |
Document ID: LWIK-3XZL48 |
TP 560Z - 1130 System Board
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
DIMM (If Installed) (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Keyboard Bezel (1050)
LCD Assembly (1070)
Speaker (1080)
HDD Flat Cable (1081)
PC Card Slot Assembly (1090)
Heat Sink (1100)
CPU Mini Cartridge (1110)
Fan (1120)

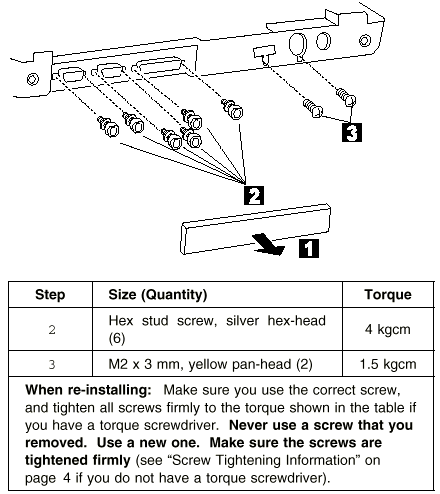

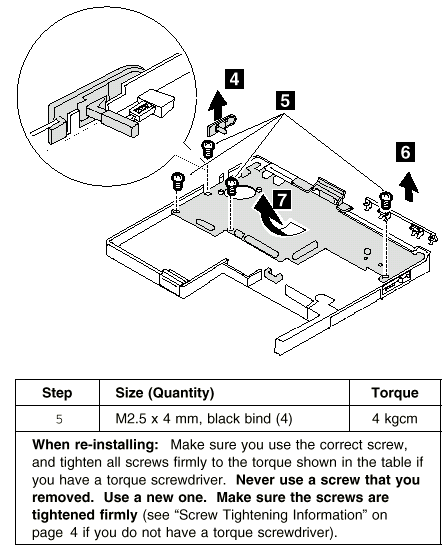

Apply grease (0.2 grams) over the module. Refer to step 5 on page 60 of the HMM for the location of the module.
Notes:
1. The system unit serial number must be restored when the system board is replaced. Select the option Set system identification on the maintenance diskette.
The flash ROM on the system board contains the vital product data (VPD)ùthat is, the system unit serial number, system board system number, and other computer-unique data.
2. Do not power off the computer when restoring the VPD. The system unit serial number label is attached to the base cover.
|
