PC Server 315 - Input / Output Connectors
Applicable to: World-Wide
|

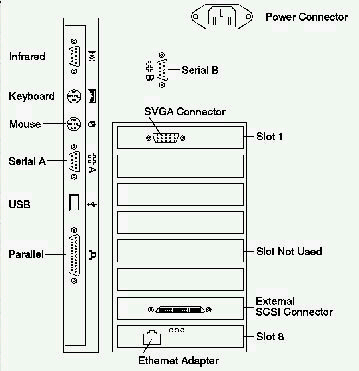

POWER CONNECTOR |
The server power cable attaches here. |
|
SERIAL CONNECTORS |
The server has two 9-pin, universal asynchronous receiver/transmitter (UART) serial connectors (A and B). Serial signal cables for modems or other serial devices attach here. To attach 25-pin signal cables, you must use a 9-pin-to-25-pin adapter cable. For information about displaying and changing port assignments, see "Devices and I/O Ports." |
|
SVGA CONNECTOR |
The monitor signal cable attaches here. If the server has an adapter other than the one shown here, refer to the instructions that come with the adapter or monitor. |
|
EXTERNAL SCSI CONNECTOR |
External SCSI devices attach here. |
|
ETHERNET CONNECTOR |
The cable for the Ethernet network attaches here. |
|
PARALLEL CONNECTOR |
The server has one 25-pin parallel port. A signal cable for a parallel device, such as a printer, attaches here. For information about displaying and changing port assignments, see "Devices and I/O Ports." |
|
UNIVERSAL SERIAL BUS (USB) CONNECTOR |
You can use a 4-pin USB cable to attach I/O devices to the USB connector. |
|
MOUSE (AUXILIARY-DEVICE) CONNECTOR |
The mouse (auxiliary-device) cable attaches here. |
|
KEYBOARD CONNECTOR |
The keyboard cable attaches here. |
|
INFRARED CONNECTOR |
An optional infrared (IR) transceiver module can attach here. |
|
