Service Hints & Tips |
Document ID: MNOK-42RRXW |
Aptiva - 2176 Removals and replacements - Indicator LED and cable
Applicable to: World-Wide

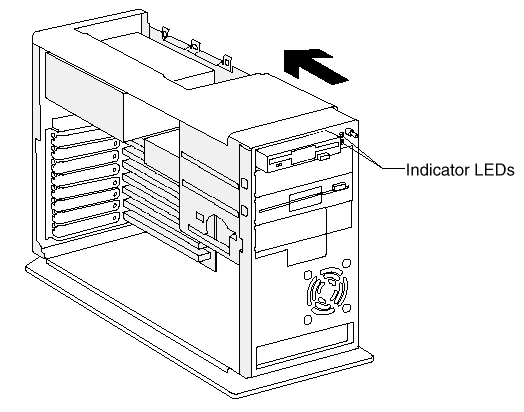

2085ùIndicator LED and Cable
Push in on the indicator LED and remove from the rear.
Disconnect the LED and cable from the system board.
See ôParts/Test Point Locationsö on page 5-1 for LED and cable locations.
|
Search Keywords |
| |
|
Hint Category |
Hardware Installation/Configuration, Power, Hard Drives | |
|
Date Created |
01-12-98 | |
|
Last Updated |
18-03-99 | |
|
Revision Date |
16-03-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2176 | |
|
Model |
All | |
|
