Service Hints & Tips |
Document ID: MNOK-42QN24 |
Aptiva - 2134/2144 Removals and replacements - Left drive support bracket
Applicable to: World-Wide
1010 - Left Drive Support Bracket
- Disconnect any cables necessary for removal.
- Slide bracket toward back to release catches. Lift up to remove.

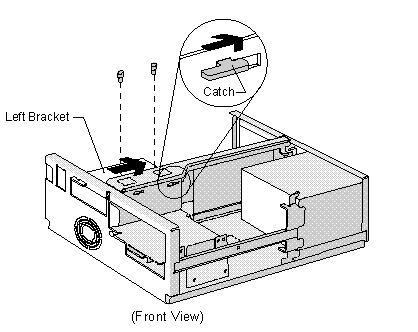

Figure 1-3. Left Drive Support Bracket
