TP 765D/L - 2010 Palm Rest

29.196 bytes

Service Hints & Tips

Document ID: LWIK-3PMPMF

TP 765D/L - 2010 Palm Rest

Applicable to: World-Wide

2010 Palm Rest
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)

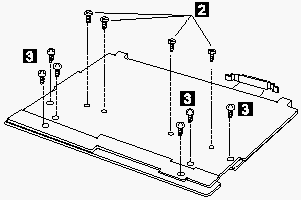

1. Turn the keyboard upside down.

Step

Size (quantity)

Memo (torque)

2

M2.5 x 5 mm (4)

Flathead (3 kgcm)

3

M2.5 x 4 mm (6)

(3 kgcm)

Note: Do not reuse the screw that you removed. Use a new screw and tighten the screw to the torque specification shown.

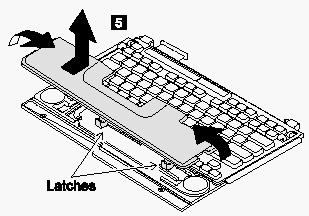

4. Turn the keyboard right-side up.

Search Keywords

Hint Category

Hardware Maintenance Information

Date Created

10-12-97

Last Updated

19-08-98

Revision Date

18-08-99

Brand

IBM ThinkPad

Product Family

ThinkPad 765L, ThinkPad 765D

Machine Type

9546, 9547

Model

Various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Step	Size (quantity)	Memo (torque)
2	M2.5 x 5 mm (4)	Flathead (3 kgcm)
3	M2.5 x 4 mm (6)	(3 kgcm)
