Netfinity EXP15 - Power supply controls and indicators - Replacing power supplies (Hot Swap)

Applicable to: World-Wide

Source: Hardware Maintenance Manual

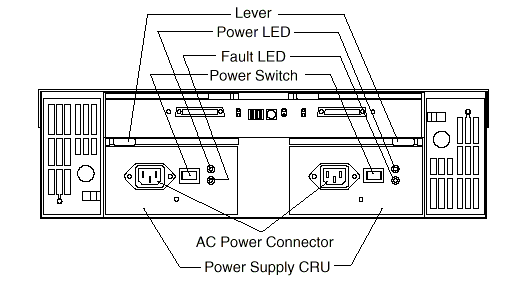

Power Supply Controls and Indicators

Power Supply LED Indications

LED	Description
Power (green)	LEDs are On when power switches are turned on.
Fault (amber)	If only the amber LED is on, then power supply is off.
Power (green) and Fault (amber)	Both the green and amber LEDs on indicates a power supply failure.

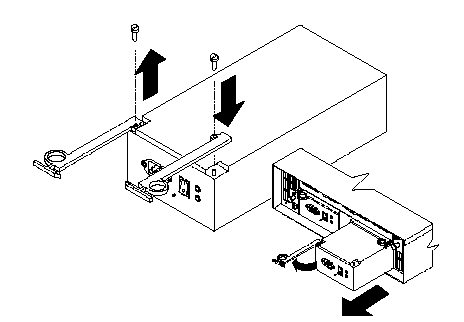

Replacing Power Supplies (Hot Swap)

To remove a power supply:
1. Turn the switch on the power supply to the Off position.
2. Unplug the supply power cord from the electrical outlet.
3. Disconnect the power cord from the power supply.
4. Grasp each pull-ring and squeeze the latches to release.
5. Pull open lever and remove power supply.

Note When installing a new power supply, make sure that the latch is mounted to the side of the supply that is toward the middle of the machine. If not, remove the lever screw, flip the lever over and replace the screw. See the illustration above.
