Parts Information

Document ID: GSMH-3ANE2B

Aptiva - 2144 (SL-I) Interior service parts

Applicable to: World-Wide

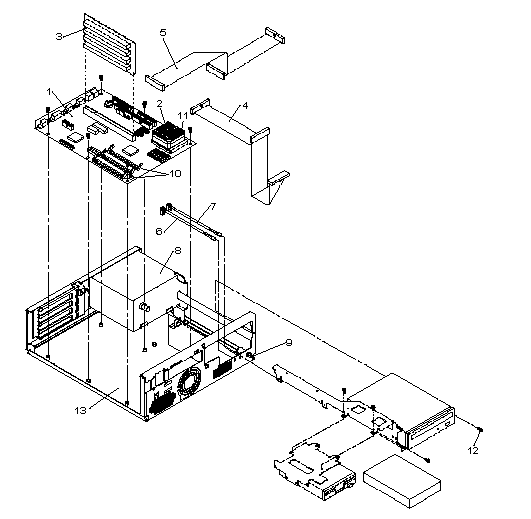

Machine Type 2144 System Unit - Interior (SL-I):

Asm -
Index

Part
Number

Units

Description

2-1

System Board

Note:
See the Appendix 'Model / Monitor Configurations and FRU Part Numbers' on for model specification.

All system board FRUs are shipped without processor,
cache memory modules,video
DRAM modules, or SIMMs. When upgrading or replacing a system board, any non-failing
FRUs must be removed from the original system board and reinstalled on the new FRU system board.

-1

40H4250

1

System Board- Type I-1

-2

71G0794

1

486DX2-50 MHz
Processor

-2

71G0795

1

486DX2-66MHz Processor

-2

41H7822

1

486DX2-80MHz Processor

-2

42H0380

1

486DX4-100MHz Processor

-2

07H0972

1

Cx586C-100MHz Processor

-1

11H9669

1

System Board - Type I -2

-2

06H7589

1

P54-75MHz Processor

-2

06H6063

1

P54C-100MHz Processor

-2

42H0378

1

P54C-120MHz Processor

-2

06H8228

1

P54C-133MHz Processor

-2

06H9892

1

P54C-150MHz Processor

-2

07H0971

1

P54C-166MHz Processor

-NS

06H5729

1

Processor Fan

-3

06H7225

1

Riser Card (ISA/PCI)

-3

10H2830

1

Riser Card (4-Connector AT)

-4

93F2394

1

Hard Disk Drive Ribbon Cable

-5

93F2395

1

Diskette Drive Ribbon Cable

-6

93F2388

1

Indicator LED and Cable, Hard Drive

-7

93F2389

1

Indicator LED and Cable, Power

-NS

13H8078

1

Dual LED Indicator Cable

06H5743

1

Hard Disk /CD-ROM Bracket

Factory -Installed Modems:
For MWave Card.

-NS

04H5788

1

Data/FAX /Modem Card (14400 bps)

04H5773

1

Modem Data /FAX/Voice (14400 bps)

04H5934

1

14.4KHz Modem WOR cable

41H7819

1

28.8KHz MWave WOR cable

41H7820

1

Modem Splitter

10H3199

1

FAX/Voice modem sound cable

-8

06H3861

1

Power Supply (5V dc) (145-W LV/HV
Switch -selectable)

-8

42H2380

1

Power Supply (5V dc)
(EMEA Only)
(145-W LV/HV
Switch -selectable)

-8

06H3862

1

Power Supply (3.3V dc)
(145-W LV/HV
Switch -selectable)

-9

60G2258

1

Power Switch to System Board Cable

10

1

System Board Memory

-10

92G7540

1

SIMM, 4MB, 72-Pin Gold

-10

92G7542

1

SIMM, 8MB, 72-Pin Gold

-10

07H0974

1

SIMM EDO, 4MB, 72-Pin Gold

-10

07H0975

1

SIMM EDO, 8MB, 72-Pin Gold

-NS

10H3070

1

Cache Memory kit, Type I -1 128KB (4 cache , 1 tag module)

-NS

42H0393

1

Cache Memory kit, Type I -2 256KB (1 cache module)

-NS

41H9638

1

Video Memory Module 512KB DRAM

-NS

93F0063

1

Lithium Battery (CR2032)

-11

93F0067

1

Jumper, 2 position ( Packet of 4)

-12

93F0041

1

Packet (Mounting Screws)

-13

06H5727

1

System Base Chassis
