Service Hints & Tips |
Document ID: JGRI-3F2RXP |
|
This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose. |
Aptiva - 2134/2176 100MB Zip Drive FRU 76H3226
Applicable to: World-Wide
|
Interface |
ATA IDE |
|
Capacity |
100 MB |
|
Data Transfer Rate | |
|
Sustained |
Up to 11.2 Mbits/sec |
|
Burst |
Up to 26.7 Mbits/sec |
|
Seek Time (inlcude settling time) | |
|
Miniumum |
4.0 ms |
|
Average |
29.0 ms |
|
Maximum |
55.0 ms |
|
Latency (avg rotational delay) |
10.2 ms |
|
Spindle Speed |
2941 rpm |
|
Track-to-Track Access Time |
5.0 ms |
|
Average Head Switch Time |
8.0 ms |
|
Head Reload Time |
200.0 ms |
|
Start/Stop Time (average) |
3/2 secs |
|
Reliability | |
|
Nonrecoverable Errors |
< 10 errors in 1013 bits |
|
Drive Mean Time Before Failure |
100,000 hrs |
|
Mean Time to Repair |
0.5 hr |
|
Service Life |
5 yrs |
|
Drive Insertion/Removal Cycles |
10,000 minimum |
|
Diske Insertin/removal Cycles |
2,000 minimum |
|
Enivronmental Limits | |
|
Operating | |
|
Temperature - Drive & Controller |
10 to 32 C (50 to 89.6 F) |
|
Relative Humidity (noncondensing) |
10 tO 80% |
|
Max Wet Bulb |
26.7 C (80 F) |
|
Max Temperature Gradient |
12 C/hr (22 F/hr) |
|
Altitude |
to 3,048 m (10,000 ft) |
|
Shock |
7g, 1/2 sine wiave for 11 msec |
|
Storage (6 months) | |
|
Temperature - Drive & Controller |
-22 to 52 C (-8 to 126 F) |
|
Relative Humidity (noncondensing) |
10 to 90% |
|
Max Wet Bulb |
29.4 C (85 F) |
|
Altitude |
n/a |
|
Shock |
n/a |
|
Shipping (96 hr) | |
|
Temperature - Drive & Controller |
-40 to 60 C (-40 to 140 F) |
|
Relative Humidity (noncondensing) |
10 to 90% |
|
Max Wet Bulb |
29.4 C (85 F) |
|
Altitude |
n/a |
|
Shock |
100g for 11 msec |
|
Electrical Power Requirements | |
|
Voltage |
5 vdc #5% |
|
Maximum |
800 mA |
|
Peak |
1.65 amps |
|
Maximum ripple |
50 mV P-P |
|
Max Continuous Power Dissipation |
4.0 Watts |
|
Physical Specifications | |
|
Height |
25.4 mm (1.0 in) |
|
Width |
101.4 mm (3.99 in) |
|
Length |
163.6 mm (6.44 in) |
|
Weight |
374.22 grams (13.2 ounces) |
Installing as a Boot Drive
The Factory installed Zip 100 ATA/IDE drive is connected to the system board secondary drive connector. If the Zip ATA drive is to be the primary boot drive it must be connected to the Primary drive connector and configured as the Master drive and the following information entered in CMOS:
|
Cylinders |
512 |
|
Heads |
12 |
|
Sectors per Track |
32 |
!! WARNING !!
Unpredictable results may occur if Zip 100 ATA drive information is entered in CMOS for Zip drives that are NOT used as the primary boot drive.

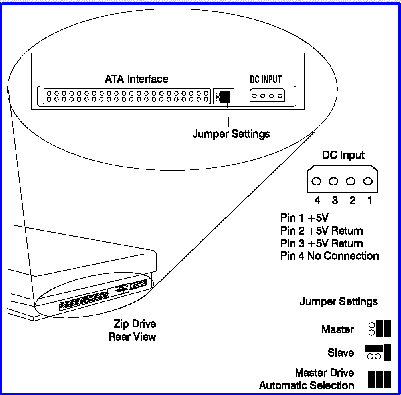

Jumper Settings
|
Search Keywords |
| |
|
Hint Category |
ZIP Drives, Jumper/Switch Settings, Technical Specifications | |
|
Date Created |
10-03-97 | |
|
Last Updated |
22-01-99 | |
|
Revision Date |
09-12-99 | |
|
