Parts Information

Document ID: PMYS-3X2TKC

PS/2 Server 85 and 95 - System parts listing (9585 DX & DX2, 9595 - Type 4)

Applicable to: World-Wide

Service Information:

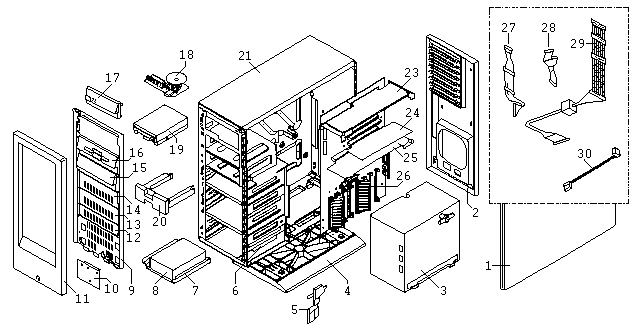

Index:

FRU P/N:

1

Access Cover

61G3533

Access Cover Fan

61G3827

Access Cover Fan Cable

61G3824

2

Rear Bezel

61G3823

I/O Shadowbox Ground Spring
(with thumbscrews)

92F0099

3

400 Watt Power Supply

92F0267

288 Watt Power Supply
(for 9585-xKx or xNx)

92F2637

335 Watt Power Supply (85)

92F0051

Power Supply Ground Strap

33F8418

4

Pedestal with Plate

33F8422

5

Tamper-Evident Switch/Cable Assy.

61G3518

6

Drive Support Structure

92F0280

Ground Spring (left)

33F6853

Ground Spring (right)

61G3528

7

Drive Mounting Slide
(for 128MB MO-drive)

85F0022

DASD Guide

33F8441

DASD Ground Spring

96F9199

8

540MB 1/3 Ht. Hard Disk Drive (SCSI)

92F0406

1GB 1/3 Ht. Hard Disk Drive (SCSI)

92F0428

Drive Power Cable (Two connector)

34F0014

2.0/4.0-GB 4 mm Tape Drive

FRU P/N

127MB / 230MB Rewriteable Optical Drive

FRU P/N

Internal CD-ROM-(I and II)

FRU P/N

2-Feature Bezel

64F0168

5.25 Inch Diskette Drive Bezel

64F4103

5.25 Inch Framing Bezel

33F8459

CD-ROM Drive I and II Bezel

64F0138

Rewriteable Optical Drive Bezel

85F0018

3.5 Inch Device Filler Bezel

64F4149

9

Drive Retainer

61G3516

10

Tamper-Evident Linkage Assy.

61G3519

11

Front Bezel

61G3515

12

DASD Bezel (small)

33F8425

13 - 14

DASD Bezel (medium)

64F4136

15

Blank Diskette Drive Bezel

33F8437

16

3.5 Inch Diskette Drive Bezel

33F8437

17

Operator Panel Bezel

92F0281

Operator Panel Bezel
(for 9585-xKx and xNx)

61G3517

18

Operator Panel Card Assy.

92F0259

Operator Panel Card Assy.
(for 9585-xKx and xNx)

61G3736

19

1.44MB 3.5 Inch Diskette Drive

64F0162

Drive Slide (for 64F0162)

64F0156

2.88MB 3.5 Inch Diskette Drive
(with slide)

64F0204

Drive Slide (for 64F0204)

64F0156

2.88MB 3.5 Inch Diskette Drive
(with electr. eject.)

92F0129

Bezel (for 92F0129)

92F0131

20

Hard Disk Drive Mounting Tray

85F0013

21

Base Frame (R)

61G8322

22

System Board w/o Memory (Board with 2x serial connector)

92F2623

System Board 486DX-33 w/SCSI
(no memory for 9585-xKx)

61G2405

System Board 486DX-33/66 w/SCSI
(no memory for 9585-xNx)

61G2401

L2 Cache 128KB (for 61G2405)

61G4098

L2 Cache 256KB (for 61G2401)

61G4098

23

SCSI-2 Fast/Wide Adapter/A

92F0160

SCSI-2 Adapter 16 > 8
(for 9585-xKx and xNx)

61G3594

24

SVGA-NI Display Adapter/A

71G4877

ISO Display Adapter/A
(for 9585-xKx and xNx)

39G3298

MGA Ultima /2/M/H Video
Graphics Adapter

06H2928

25

Processor Boards
80486DX2 33/66 MHz (Type 4 proc.-board)

61G2343

Pentium 60 MHz
(wrong Pentium Processor !)

52G9362

Pentium 60 MHz
(replaced Pentium Processor)

06H7324

Pentium 66 MHz
(wrong Pentium Processor !)

92F0120

Pentium 66 MHz
(replaced Pentium Processor)

06H7317

Pentium 90 MHz
(wrong Pentium Processor !)

06H3739

Pentium 90 MHz
(replaced Pentium Processor)

06H7095

26

System Board Memory Module Kits

Parity Memory Module Kits
2MB (70 ns)
4MB High-Reliability Parity SIMM (70 ns)
8MB High-Reliability Parity SIMM (70 ns)

92F0102
71G6203
71G6204

ECC Memory Module Kits

4MB (70 ns)
8MB (70 ns)
16MB (70 ns)

92F0097
92F0098
96F9100

27

Diskette Drive Signal Cable

92F0283

28

Operator Panel Cable
(connects to system board)

92F0329

Operator Panel Cable
(connects to processor card)

61G3817

Cable Cover (Option)

61G3841

Cable Cover Lock/Plug (Option)

61G3842

29

SCSI Signal Cable

92F0327

30

Hard Disk Drive Power Cable

33F8431

SCSI Internal Cable 8-Bit
(for 9585-xKx and xNx)

61G3593

Multi-Drop Power Cable

64F0197

Speaker

33F8444

Keylock Assembly

61G3825

Battery

33F8354

Adapter Guide

33F8440

Mouse (3-Button) 9595 PQx Model

51G9652

MGA Ultima Video Graphics Adapter
(for 9595 Mod. PQx)

06H2928

Misc. Parts Kit

33F8435

Search Keywords

Document Category

Service Parts

Date Created

10-09-96

Last Updated

09-04-99

Revision Date

09-04-2000

Brand

IBM PC Server

Product Family

Server 85, Server 95

Machine Type

9585, 9595

Model

0KG; 0KT; 0N0; 0ND; 0NG; 0NT; 0NV; 1NG; 4UQ; 4UR; 4UT; 4VA; 4VB; 4VC; 4VD; 4VE; 4VF; 4VG; 4VH; 4VJ; 4VK; 4VL; 4VM; 4VN; 4VP; 4VQ; 4VR; 4VS; 4VT; 4VU; 4VV; 4VW; 4VX; 4VY; 4VZ; 4Y6; 4Y7; 4Y8; 4Y9; 5KG; 5KT; 5NG; 5NT; 9N2; 9N4; 9N5; 9N6; 9N8; 9N9; E13; E23; E33; NNT; PN2; Z01; Z02; Z03; Z04; Z05; Z06; Z07; Z08; Z09; Z0A; Z0B; Z0C; Z0D; Z0E; Z0F; Z0G; Z0H; Z0J; Z0K; Z0L; Z0M; Z0N; Z0P; Z0Q; Z0R; Z0S; Z0T; Z0U; 0NC; 0NG; 0NT; 0P0; 0PG; 0PT; 0PV; 0QG; 0QT; 0QV; 1N0; 1NG; 1NT; 1NV; 1PG; 1PT; 2NT; 2QT; 3NG; 3NT; 3PG; 3PT; 3QG; 3QT; 4Y1; 4Y3; 4Y5; 5PT; 5QT; 6NG; 6NT; 8NT; 8PT; 8QD; 8QT; 9N2; 9N4; AN3; ANT; APG; APT; AQT; B03; B06; B0C; B20; B23; B26; B30; B33; B36; BNT; BPT; BQT; CPT; INT; PNT; S03; S06; S0C; S10; S13; S20; S23; S26; S2C; S30; S33; S36; Y01; Y11; Z01; Z02; Z03; Z04; Z05; Z06; Z07; Z08; Z09; Z0A; Z0B; Z0C; Z0D; Z0E; Z0F; Z0G; Z0H; Z0J; Z0K; Z0L; Z0M; Z0N; Z0P; Z0Q; Z0R; Z0S; Z0T; Z0U; Z0V; Z0W; Z0X; Z0Y

TypeModel

Retain Tip (if applicable)

N/A
