Parts Information |
Document ID: BMOE-423HLZ |

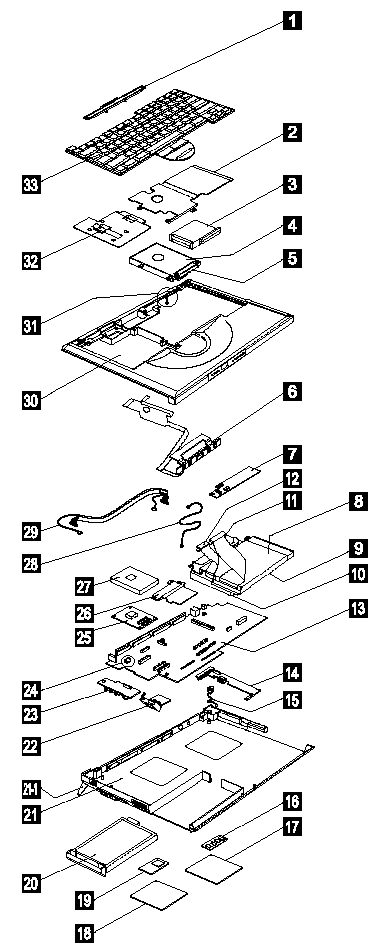

TP 1400 - FRU parts listing
Applicable to: World-Wide
|
No. |
Description |
FRU No. |
Qty. |
|
1 |
NAMEPLATE COVER |
05K5950 |
1 |
|
2 |
HEATSINK HDD |
05K5680 |
1 |
|
3 |
PCMCIA HOLDER |
05K5476 |
1 |
|
4 |
HDD MODULE ASSY 3.2 GB |
05K8974 |
1 |
|
|
HDD MODULE ASSY 4.0 GB |
05K8975 |
1 |
|
5 |
Kitting, HDD |
05K5677 |
1 |
|
6 |
CD CONTROL CARD |
10L1170 |
1 |
|
7 |
TRACKPOINT BOARD |
10L1171 |
1 |
|
8 |
FDD W/ BEZEL |
05K8957 |
1 |
|
9 |
CD ROM CHASSIS |
05K5678 |
1 |
|
10 |
CD ROM MODULE |
05K8956 |
1 |
|
11 |
FPC CD ROM |
05K2806 |
1 |
|
12 |
FPC FDD |
05K2799 |
1 |
|
13 |
PLANAR |
10L1175 |
1 |
|
14 |
AUDIO CONNECTOR BOARD |
10L1172 |
1 |
|
15 |
RJ11 CABLE Assembly |
05K2803 |
1 |
|
16 |
DIMM 32MB |
10L1226 |
1 |
|
|
DIMM 64MB |
10L1227 |
1 |
|
17 |
DIMM COVER |
05K5951 |
1 |
|
18 |
MODEM COVER |
05K5952 |
1 |
|
19 |
MODEM |
10L1176 |
1 |
|
20 |
BATTERY ASSY (NiMH) |
02K6526 |
1 |
|
21 |
Bottom Base |
05K5684 |
1 |
|
21-1 |
LEG (L,R) |
05K5953 |
1 |
|
22 |
FAN Assembly |
05K5683 |
1 |
|
23 |
AUDIO PCB |
10L1173 |
1 |
|
24 |
RTC BATTERY |
11J8591 |
1 |
|
25 |
CPU BOARD 266MHz |
10L1198 |
1 |
|
26 |
DC/DC CHARGER |
10L1177 |
1 |
|
27 |
BRACKET CPU EMI |
05K5685 |
1 |
|
28 |
Cable Assembly |
05K2798 |
1 |
|
29 |
AUDIO CABLE Assembly |
05K2800 |
1 |
|
30 |
KBD BEZEL |
05K5676 |
1 |
|
31 |
LID S/W ASM |
05K5479 |
1 |
|
32 |
HEATSINK CPU |
05K5682 |
1 |
|
33 |
Keyboard (US) |
02K4737 |
1 |
|
|
Keyboard (Japan) |
02K4738 |
1 |
|
|
Keyboard (Germany) |
02K4739 |
1 |
|
|
Keyboard (Traditional Chinese) |
02K4741 |
1 |
|
|
Keyboard (Danish) |
02K4742 |
1 |
|
|
Keyboard (France) |
02K4743 |
1 |
|
|
Keyboard (Korea) |
02K4745 |
1 |
|
|
Keyboard (UK) |
02K4748 |
1 |
|
|
Keyboard (Canadian French) |
02K4744 |
1 |
|
|
Keyboard (Norwegian) |
02K4747 |
1 |
|
|
Keyboard (Swedish/Finnish) |
02K4746 |
1 |
|
|
Keyboard (Dutch) |
02K4740 |
1 |
|
|
AC Adapter 2-pin inlet |
12J0538 |
1 |
|
|
AC Adapter 3-pin inlet |
11J8627 |
1 |
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
09-11-98 | |
|
Last Updated |
07-05-99 | |
|
Revision Date |
08-05-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad i Series 1400 | |
|
Machine Type |
2611 | |
|
Model |
All | |
|
