Service Hints & Tips |
Document ID: MWER-3THU84 |
PS/1 - 2168 38C/57C/BB1/US1/SR1 (SL-B) System Information
Applicable to: United States
PS/1 - 2168 (SL-B) System Information
2168 System Architecture
|
Model |
2168 BB1 |
2168 US1 |
2168 SR1 |
|
Processor |
486DX2/66 |
486DX2/50 |
486SX/33 |
|
Cache / Max |
0 / 256KB |
0 / 256KB |
0 / 256KB |
|
Video Chipset |
CL-5428 |
CL-5428 |
CL-5428 |
|
VRAM / Max |
1MB / 1MB |
1MB / 1MB |
1MB / 1MB |
|
Disk Drive |
3.5" |
3.5" |
3.5" |
|
Hard Drive |
420 MB |
340 MB |
253 MB |
|
Memory / Max |
4 MB / 64 MB |
4 MB / 64 MB |
4 MB / 64 MB |
|
Modem Speed |
14.4 Kbps |
2400 bps |
2400 bps |
|
Fax Speed (S/R) |
14.4K / 14.4K |
9600 / 4800 |
N/A |
|
CD-ROM |
Matsushita 2x |
Matsushita 2x |
Matsushita 2x |
|
Sound Card |
Aria 16 |
Aria 16 |
Sound Blaster |
|
Model |
2168 38C |
2168 57C |
|
Processor |
486DX2/50 |
486DX2/66 |
|
Cache / Max |
0 / 256KB |
0 / 256KB |
|
Video Chipset |
CL-5428 |
CL-5428 |
|
VRAM / Max |
512KB / 1MB |
1MB / 1MB |
|
Disk Drive |
3.5" & 5.25" |
3.5" & 5.25" |
|
Hard Drive |
340 MB |
720 MB |
|
Memory / Max |
4 MB / 64 MB |
8 MB / 64 MB |
|
Modem Speed |
2400 bps |
14.4 Kbps |
|
Fax Speed (S/R) |
9600 / 4800 |
14.4K / 14.4K |
|
CD-ROM |
N/A |
N/A |
|
Sound Card |
N/A |
N/A |
*The Combo drive integrates a 5.25" and a 3.5" diskette drive into a single 5.25" enclosure.
Cache denotes installed external cache, VRAM denotes installed video memory, Memory denotes installed system memory, Max denotes maximum expandability. Fax speed is listed only on machines whose modems have fax capabilities and are listed as (Send/Receive) bps.
Regular system memory is upgraded with 36-bit or 32-bit (parity or non-parity) industry standard 70ns 72-pin SIMM chips. If the machine has 2 SIMM sockets, it can handle up to a 32MB SIMM in each socket. If it has 4 SIMM sockets, it can handle up to a 16MB SIMM in each socket.
Video drivers for these machines are available on IBM's FTP site.
You can download the Windows 3.1 driver for the CL-GD5428 chipset at ftp://ftp.infania.net/pccbbs/ps1/c5426_28.exe

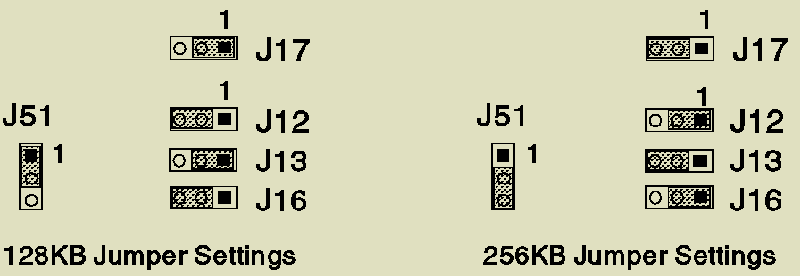

To upgrade cache memory on machines that have that capability (see product matrix), you will need to add either 4 (in bank 1 for 128K) or 8 (in both banks for 256K) 28-pin 32K x 8, 25ns SRAM modules. You will also need to add the appropriate TAG chip (32K x 8, 20ns SRAM for 256K ; 8K x 8, 20ns SRAM for 128K). If you are adding 256K of cache, you will also need to move the cache jumpers as shown below.
All of these machines use a standard IDE controller. This interface should support any standard IDE device. Some Enhanced IDE (EIDE) devices (namely hard drives larger than 528MB) may be able to function with the use of disk overlay software, normally supplied by the drive manufacturer, but is not supported by IBM. Though EIDE CD-ROMs are not supported on these machines, a CD-ROM with it's own ISA interface controller should work. Any ISA card (CD-ROM controller, modem, SCSI card) added to these machines needs to be non-"Plug and Play" to help insure compatability.
Processor Upgrade Matrix
|
Model |
CPU |
Upgrade Processor |
Installation Notes |
|
2168 38C |
DX2/50 |
P24T-63 |
J24: 1-2, J25: 1-2, J31: 2-3 |
|
2168 57C |
DX2/66 |
P24T-83 |
J24: 1-2, J25: 1-2, J31: 2-3 |
|
2168 SR1 |
SX33 |
487SX, P23T-66, P24T-83 |
J24: 2-3, J25: 1-2, J31: 2-3 for P23T-66 |
|
2168 US1 |
DX2/50 |
P24T-63 |
J24: 1-2, J25: 1-2, J31: 2-3 |
|
2168 BB1 |
DX2/66 |
P24T-83 |
J24: 1-2, J25: 1-2, J31: 2-3 |
The 487SX indicates the Intel 487SX math coprocessor. The P24T-63 or P24T-83 indicates the Intel Pentium Overdrive Processor (63 Mhz or 83 Mhz). Under installation notes (Jxx: y-z), Jxx denotes a jumper and y-z denotes its position. If you receive a 2462 Startup POST error after installing a Pentium Overdrive, you may need a BIOS chip upgrade (FRU 76H6938) These are the only processor upgrades supported by IBM for these machines.
Phone Support for these machines is available from IBM on a fee basis over the IBM Club's 900# (1-900-555-2582). The first minute of this call is free, each additional minute is charged to your phone bill at a rate of $2.99/minute.
|
