Service Hints & Tips |
Document ID: LWIK-3TYLH2 |
TP 600 - Battery pack removal and installation
Applicable to: World-Wide

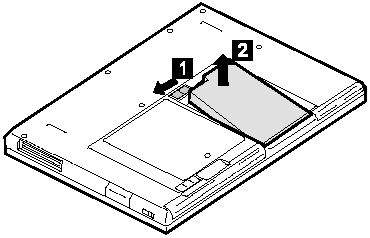

Turn the computer upside down.
1. Slide the battery relase latch to the left.
2. Lift up on the battery pack to remove the battery.
3. Reverse the procedure to install a new battery.
Search Keywords |
| |
Hint Category |
Installation/Removal Procedures, Power | |
Date Created |
28-04-98 | |
Last Updated |
19-01-99 | |
Revision Date |
19-01-2000 | |
Brand |
IBM ThinkPad | |
Product Family |
ThinkPad 600 | |
Machine Type |
2645, 2646 | |
Model |
Various | |
