NetMEDIA Storage Expansion Unit EL - Photos
Applicable to: World-Wide
NetMEDIA Storage Expansion Unit EL (P/N 3551-001)
Supports 2 or 4 media devices
Supported Media Devices:
- IBM 10/20 GB (P/N 01K1319)
- IBM 20/40DLT (P/N 01K1320)
- IBM 35/70 DLT (P/N 04K0149)
Front View

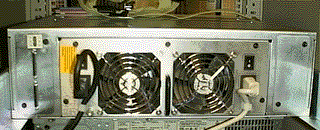

Rear View

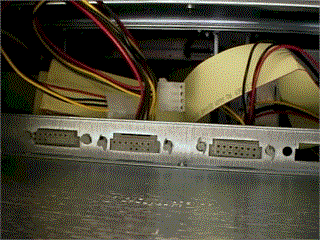

Replaceable Power Tray
The replaceable power tray makes contact with 3 inside connectors.
- The two connectors in the center split out to two P1 (12v,5v) type connectors for media device power.
- The connector on the left side has 9 wires that connect power and monitoring signals to the optional Systems Management Adapter.

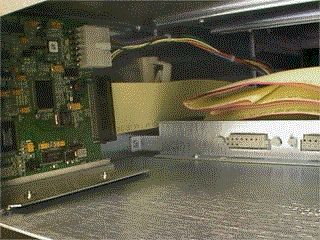

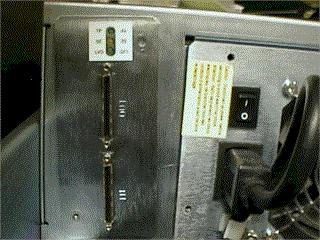

Optional Systems Management Adapter (P/N 10L7113)
2 external 0.8mm (female) VHDCI SCSI connections
Functions Provided:
- Remote system ID queries
- Independent dual SCSI
- Temperature, power, and fan monitoring
- SCSI termination (repeater)
- Tape array and mirroring
Installed in the rear left side

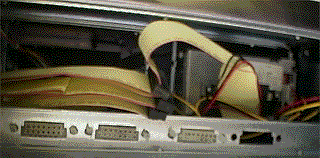

Fast/Wide SCSI Cable
Optional Systems Management Adapter includes a 4 drop standard 68 pin High Density D-type (male) connector Single-Ended F/W SCSI cable.
Optional External Cables:
Male 68 to Male 0.8mm (Group B)
- SCSI 68-PIN 1M CABLE (P/N 76H3589)
- SCSI 68-PIN 2M CABLE (P/N 01K8027)
- SCSI 68-PIN 4.3M CABLE (P/N 01K8029)
|
|
