Parts Information |
Document ID: GSMH-3EFEWA |
PCServer330 - Drives (Hot-Swap)
Applicable to: World-Wide

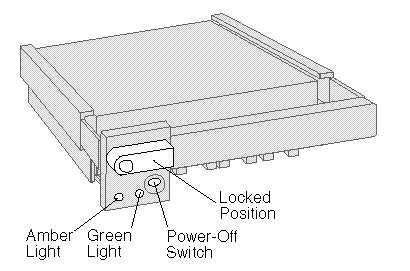

Drives (Hot-Swap):
Light States:
|
Green |
Amber |
Description |
|
On |
Off |
Drive tray is powered on; the hard disk drive is inactive; and the drive should not be removed. |
|
Blinking |
Off |
The hard disk drive is inactive. The hot-swap drive can be removed safely. |
|
On |
On or Blinking |
The hard disk drive is in use, and should not be removed. |
|
Off |
Off |
The drive is defective, or no power is being supplied to the drive. The hot-swap drive can be removed safely. |
|
