Parts Information

Document ID: DDSE-469LVV

Netfinity 3000 - System Parts Listing

Applicable to: World-Wide

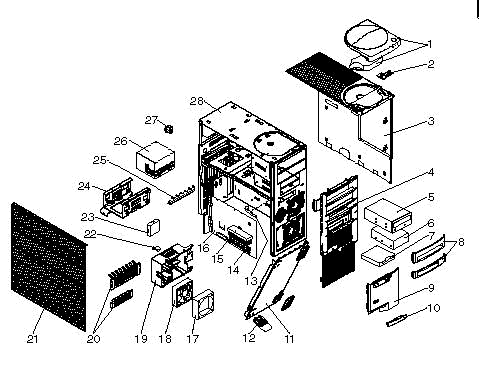

Parts Listing (Netfinity 3000 - Type 8476)

System Index

System (Netfinity 3000 - Type 8476)
Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X,
21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X

FRU No.

1

Cover and Handle
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

02K2785

2

Power Switch/LED Cable Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J4510

Power Switch Cover
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9657

3

Top Cover Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

01K1637

4

Front Bezel (Bay Panel)
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J5548

5

CD-ROM Drive (32X)
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

02K1119

5

CD-ROM Drive (32X)
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

02K3414

5

CD-ROM Audio Cable
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

75H9219

6

4.5 GB Hard Disk Drive
(Models 11X, 21X)

10L6084

6

9.1 GB SCSI Hard Disk Drive
(Models 31U, 31X, 41U, 41X)

10L6085

6

9.1 GB SCSI Hard Disk Drive
(Models 31U, 31X, 41U, 41X)

36L8648

7

1.44 MB Diskette Drive
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

75H9550

Diskette Drive Cable
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

76H7340

8

Miscellaneous Blank Bezels
(Bay Panels) (Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X,
41U, 41X, 50U, 50X, 51U, 51X)

01K1888

9

3.5-Inch Bezel (Bay Panel) Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J5549

10

Model Plate
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9569

11

Bottom Cover Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9587

12

Foot (4 each)
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J4506

13

System Board Latch and Screw
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

01K1612

14

32 MB ECC DIMM (Models 10X, 11X, 15X)
64 MB ECC DIMM (Models 16X, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

01K1143
01K1140

15

266MHz/512 Cache Processor (Models 10X, 11X)

12J2703

300MHz/512 Cache Processor (Models 15X, 16X)

01K4291

350MHz/512 Cache Processor (Models 20X, 21X)

01K4333

400MHz/512 Cache Processor (Models 30U, 30X, 31U, 31X)

37L5841
(replaces 01K4334)

450MHz/512 Cache Processor (Models 40U, 40X, 41U, 41X)

37L5842
(replaces 01K1578 )

500MHz/512 Cache Processor (Models 50U, 50X, 51U, 51X)

33L1615

16

System Board without Memory, CPU, or Cache
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

61H2322

17

Fan Bracket (for 02K2861)
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U,
50X, 51U, 51X)

03K9606

18

92MM Fan Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

02K2861

19

Card Guide
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9605

20

EMC kit
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J4508

21

Access Cover Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J5546

22

C2 Switch Cable Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U,
50X, 51U, 51X)

01K1495

23

AGP Cover
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9623

24

3.5-Inch Hard Disk Drive Bracket
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9608

25

I/O Clamp
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9604

26

Power Supply 330 Watt
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

01K9866

27

Keylock Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J5102

28

Chassis Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9609

3.5 / 5.25-Inch DASD Bracket
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U,
50X, 51U, 51X)

12J4501

5.25-Inch Hard Disk Drive Tray (Bay 2)

28L5045

5.25-Inch Picture Frame Bezel
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X)

12J6473

60MM Fan Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

10L5513

Fan and Bracket Kit
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

37L3062

Goalpost Kit with Goalposts for new system board (2 each) and Goalposts for old system board (2 each) (Models 50U, 50X, 51U, 51X)

33L4321

IDE (2X) Drive Cable
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J4518

Keyboard
(See "Keyboards")
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X)

Miscellaneous Hardware Kit
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U,
50X, 51U, 51X)

03K9603

Miscellaneous Optional Bezel (Bay Panel)
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

12J5551

Miscellaneous Parts Kit
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

  • Rubber Grommets (4 each)
  • M4x12 Hex Head Screws (2 each)
  • M3x5 Slotted Screws (4 each)
  • I/O Bracket (2 each)
  • Hex Head Screws (4 each)
  • Slotted M3.5 Screws (4 each)

10L5600

Mouse
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

76H0889

Power Switch Cover
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9657

Retention Module Adapter
(Models 50U, 50X, 51U, 51X)

33L4320

Riser Card
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X)

20L0926

Riser Card
(Models 50U, 50X, 51U, 51X)

11L1567

Riser Supports, Front and Rear
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

02K2766

SCSI Card
(Models 11U, 11X, 16U, 16X, 21U, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

10L7095

SCSI Cable
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

01K1467

SCSI LED Cable
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

76H7344

Speaker Assembly
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9607

System Board Rail
(Models 10U, 10X, 11U, 11X, 15U, 15X, 16U, 16X, 20U, 21U, 20X, 21X, 30U, 30X, 31U, 31X, 40U, 40X, 41U, 41X, 50U, 50X, 51U, 51X)

03K9626
