Parts Information |
Document ID: GSMH-3CNE36 |
IBM ValuePoint - Type 64xx hard disk drive jumper settings
Applicable to: World-Wide
Hard Disk Drive Jumper Settings:
Hard disk drives for ValuePoint computers use jumpers or tabs to set the drives as primary or secondary. Match your hard disk drive to one of the following figures. Set the first drive as the primary (master) drive (1). If a second drive is installed, set it as the secondary (slave) drive (2).

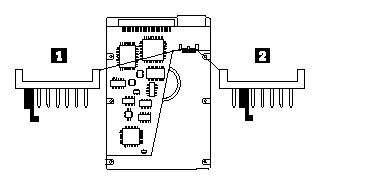

170MB and 340MB AT Drives with Tabs:
270MB, 364MB, 540MB, and 728MB AT Drives with Tabs:

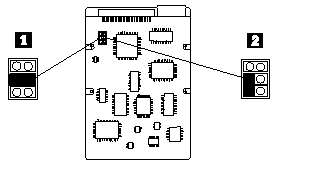

270MB and 540MB AT Drive with Jumpers:
527MB AT Drive with Jumpers:
|
Search Keywords |
| |
|
Document Category |
Hardware Maintenance Information | |
|
Date Created |
24-12-96 | |
|
Last Updated |
21-10-98 | |
|
Revision Date |
20-10-99 | |
|
Brand |
IBM PC | |
|
Product Family |
ValuePoint | |
|
Machine Type |
6472, 6482, 6492, 6484, 6494 | |
|
Model |
all | |
|
TypeModel |
| |
|
