Service Hints & Tips |
Document ID: GKEY-3H4GJK |
PCServer704 - Diagrams (Cover- Front, Side & Top)
Applicable to: World-Wide

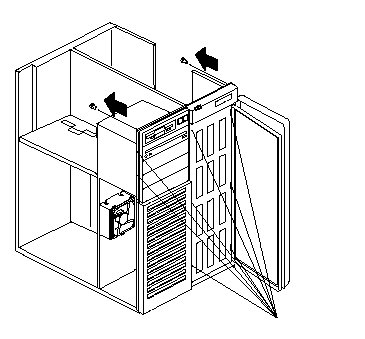

Cover (Front Bezel)
Depress Clips (8 places)

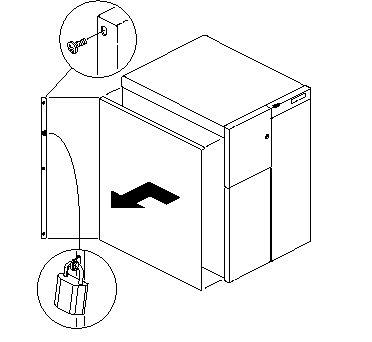

Cover (Side)
|
Attention | |
|
For proper cooling and airflow, always replace the side covers before powering-on the system. |

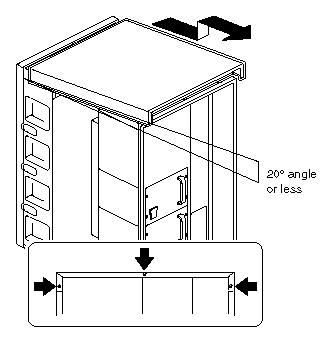

Cover (Top)
|
Attention | |
|
You must remove both side covers before you can remove the top cover. |
|
