Document ID: LWIK-3TKNK5 |

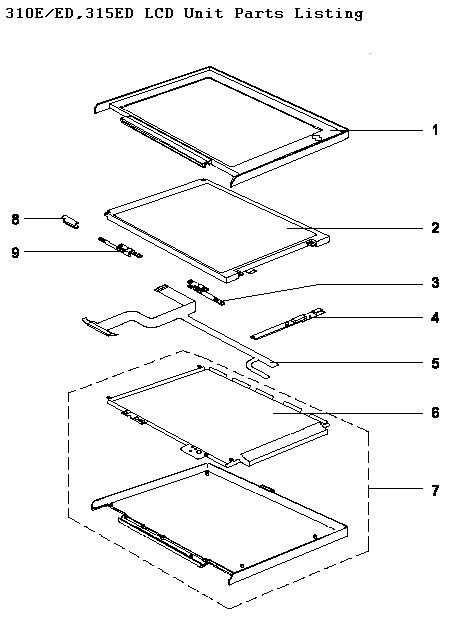

TP 310E/ED,315ED - LCD unit FRU parts list
Applicable to: World-Wide
|
Item # |
Description |
FRU # |
|
1 |
11.3" TFT LCD bezel (with logo) |
11J8576 |
|
2 |
11.3" TFT LCD |
11J8594 |
|
12.1" DSTN LCD |
12J0492 | |
|
3 |
LCD hinge (R) |
11J8652 |
|
4 |
LCD inverter |
11J8589 |
|
5 |
11.3" TFT LCD FPC cable (with LCD cable diaper) |
11J8578 |
|
12.1" DSTN LCD FPC cable (with LCD cable diaper) |
12J0493 | |
|
6 |
- | |
|
7 |
11.3" TFT LCD cover (with logo and LCD diaper and left hinge) |
11J8574 |
|
12.1" DSTN LCD cover (with logo and LCD diaper and left hinge) |
12J0495 | |
|
8 |
- | |
|
9 |
LCD hinge (L) |
12J0527 |
|
