Aptiva - 2137 Factory installed modem card layout
Applicable to: World-Wide
Factory-Installed Modem Card Layout

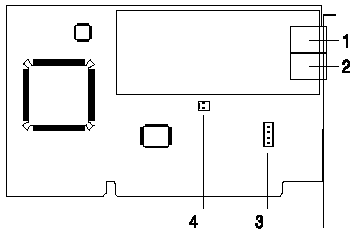

Figure 5- 6 Factory-Installed Modem Card Layout
Factory-Installed Modem Card Connector Functions
|
Table 5- 5 Factory-Installed Modem Card Connector Functions |
|
Item |
Function |
Connect to... |
|
1 |
Telephone line-out |
Telephone set |
|
2 |
Telephone line-in |
Telephone line |
|
3 |
Voice-in/speaker-out connector |
System board (CN2) |
|
4 |
Ring-in wake-up connector |
System board (CN9) |
|
