Service Hints & Tips |
Document ID: RJJR-3PBL65 |
TP 770 - 1065 Keyboard and indicator panel removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

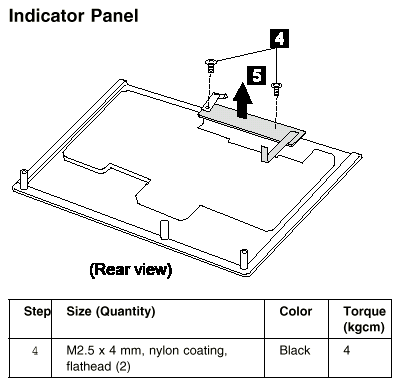

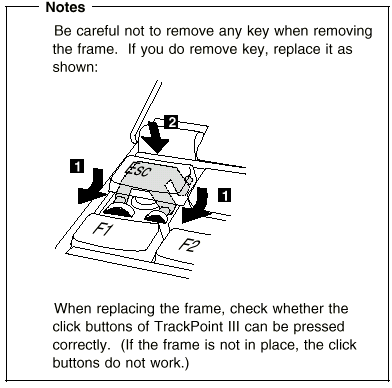

1065 Keyboard and Indicator Panel
Battery Pack (1010)
UltraBay II Device or Second Battery Pack (1020)

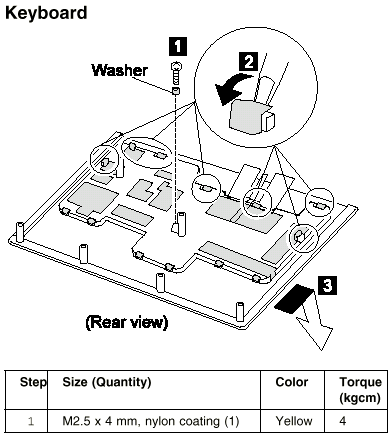

Keyboard Assembly (1060)
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
30-11-97 | |
|
Last Updated |
19-01-99 | |
|
Revision Date |
19-01-2000 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 770, ThinkPad 770E/ED, ThinkPad 770X | |
|
Machine Type |
9548, 9549, 9544 | |
|
Model |
various | |
|
TypeModel |
| |
|
