Parts Information

Document ID: LWIK-3TTH8W

TP 380/D,385/D - LCD unit FRU listing

Applicable to: World-Wide

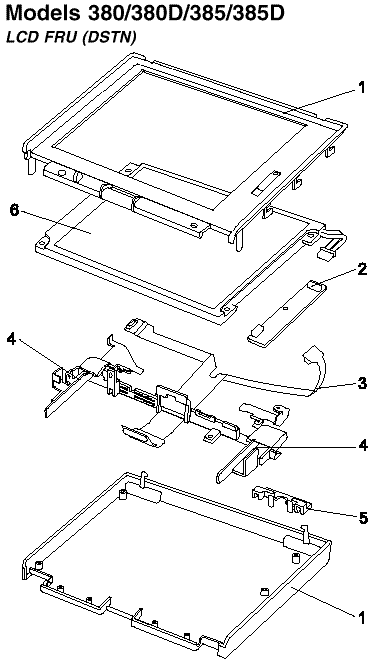

Item	Description	FRU #
1	LCD Cover	73H9940
2	LCD Inverter	73H9946
3	LCD Cable	73H9947
4	LCD Hinge	73H9942
5	LCD Lens ( see Misc. Parts)	-
6	LCD Panel(12.1" DSTN)	73H9944
	LCD Misc. Parts	73H9949
	Includes the following: Control Knob LCD Upper Holder Latch, Right Latch, Left Latch, Spring (2) Latch, Holder (2) LED Lens Screw Cap (2) Cable Clamp (1)

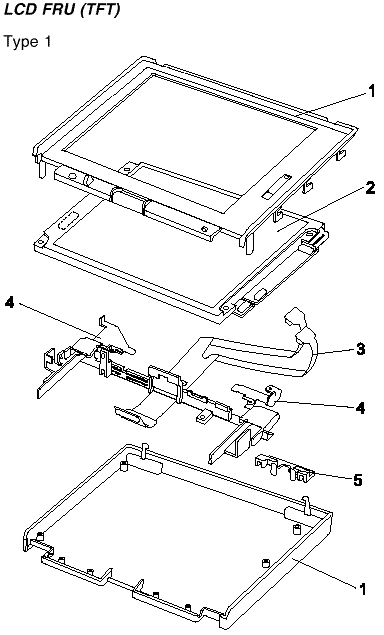

Item	Description	FRU #
1	LCD Cover	73H9941
2	LCD Panel (12.1" TFT)	05K9308
	LCD Inverter	05K3119
3	LCD Cable	73H9948
4	LCD Hinge	73H9943
5	LCD Lens ( see Misc. Parts)
	LCD Misc. Parts Include the following: Control Knob LCD Upper Holder Latch, Right Latch, Left Latch, Spring (2) Latch, Holder (2) LED Lens Screw Cap (2) Cable Clamp (1)	73H9949

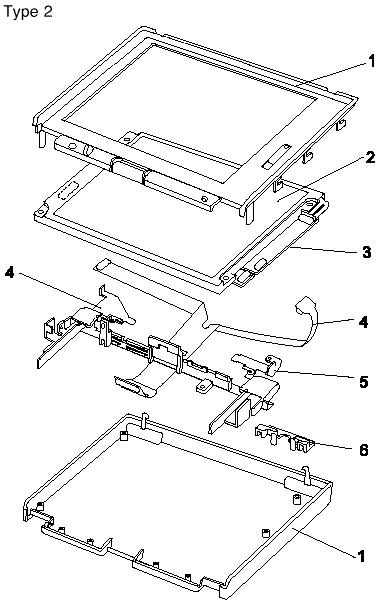

Item	Description	FRU #
1	LCD Cover	11J8860
2	LCD Panel (12.1" TFT)	11J9623
3	LCD Inverter	11J9622
4	LCD Cable	11J9625
5	LCD Hinge	73H9943
6	LCD Lens ( see Misc. Parts)	-
	LCD Misc. Parts Includes the following: Control Knob LCD Upper Holder Latch, Right Latch, Left Latch, Spring (2) Latch, Holder (2) LED Lens Screw Cap (2) Cable Clamp (1)	73H9949

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	23-04-98
	Last Updated	03-03-99
	Revision Date	17-08-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad 380, ThinkPad 380D, ThinkPad 385D
	Machine Type	2635
	Model	Various
