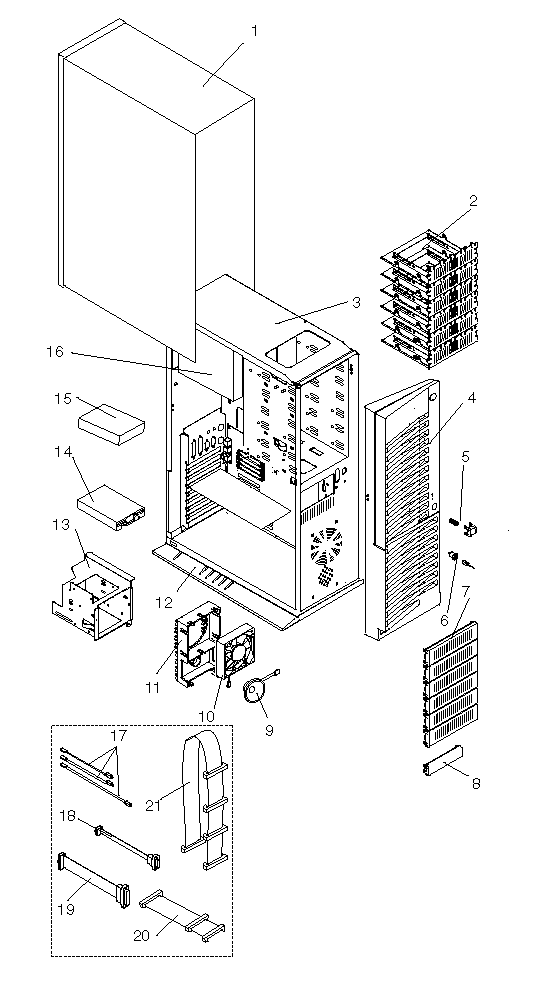

PC Server 300 - System Parts Listing
Applicable to: World-Wide
|
1 |
Access Cover |
06H8930 |
|
2 |
3.5" Hard Disk Drive Tray(s) (1 each) |
06H2652 |
|
3 |
Base Frame Assembly |
06H8933 |
|
4 |
Front Bezel/Door Assembly |
06H8935 |
|
PC Server 300 Label |
06H6003 | |
|
5 |
Power Button (with spring) |
06H2191 |
|
6 |
Keylock Assembly (with keys) |
33F8433 |
|
7 |
Bezel (5.25" Blank) |
71G0771 |
|
8 |
Bezel (3.5" Blank) |
71G0770 |
|
9 |
Speaker |
06H2649 |
|
10 |
Fan Assembly (with Connector) |
06H2647 |
|
11 |
Card Guide |
71G0757 |
|
12 |
Pedestal |
96G2412 |
|
13 |
DASD 3-Drive Cage |
06H8938 |
|
14 |
Diskette Drive (see DASD) | |
|
15 |
Hard Disk Drive (see DASD) | |
|
16 |
300W Power Supply with Switch |
71G0044 |
|
System Board, Pentium without Memory and Processor (Models 0P0, 0PT, 1P0, 1PT) |
71G0747 | |
|
Processor Chip, Pentium 60MHz (Models 0P0, 0PT, 1P0, 1PT) |
06H2680 | |
|
System Board, 486DX2-66 without Memory and Processor (Models 0N0, 0NJ, 1N0, 1NJ) |
71G0033 | |
|
Processor Chip, 486DX2-66 (Models 0N0, 0NJ, 1N0, 1NJ) |
06H2679 | |
|
L2 Cache(model 0N0, 0NJ, 1N0, 1NJ, 1P0, 1PT, 0P0, 0PT) |
92G7431 | |
|
4MB Memory SIMM, Parity (Models 0N0, |
73G3233 | |
|
8MB Memory SIMM, Parity (Models 0P0, 0PT, 1P0, 1PT) |
73G3234 | |
|
16MB Memory SIMM (Parity) |
60G2950 | |
|
32MB Memory SIMM (Parity) |
73G3235 | |
|
486 Real-Time Clock with an internal battery (Models 0N0, 0NJ, 1N0, 1NJ), |
06H3397 | |
|
Pentium Real-Time Clock with internal battery (Models 0P0, 0PT, 1P0, 1PT), |
06H3398 | |
|
486 Heat Sink with Clip (Models 0N0, 0NJ, 1N0, 1NJ) |
06H2179 | |
|
Pentium Heat Sink with Clip (Models 0P0, 0PT, 1P0, 1PT) |
06H2180 | |
|
Keyboard with Cable, | ||
|
Key/Lock Cable |
06H8766 | |
|
Power Cord | ||
|
SCSI-2 Fast PCI-Bus Adapter (Models 0PT, 1PT) |
53G0382 | |
|
SVGA Card (Models 0P0, 0PT, 1P0, 1PT, 1N0, 1NJ) |
71G0031 | |
|
VGA Card |
71G0030 | |
|
Miscellaneous Parts Kit EMC Ground Contacts (4 each) |
06H8940 | |
|
Shadow Box |
96G2411 | |
|
Cable Cover with Lock |
06H5072 |
|
17 |
LED Cables Activity, with Amber LED) |
06H8936 |
|
18 |
Serial Cable |
06H2165 |
|
19 |
Parallel Cable |
06H2166 |
|
20 |
IDE Hard Disk Drive Cable - 2X (Models 0N0, 0NJ, 0P0, 1P0, 1N0, 1NJ) |
92F0424 |
|
21 |
SCSI Cable Assembly - 4X (Models 0PT, 1PT) |
82G3626 |
|
SCSI Cable Assembly - 7X (Models 0P0, 0PT, 1P0, 1PT) |
06H2181 | |
|
Diskette Drive Signal Cable (with power) |
92F0423 | |
|
C2 Cable Assembly |
06H8767 |
|
