Parts Information

Document ID: GSMH-38ZL6R

Aptiva - 2134/2176 Monitor and power cord part numbers

Applicable to: World-Wide

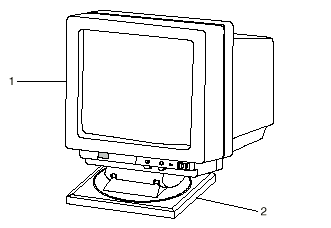

Assembly 7: Monitor and Power Cord (Linecord)

Asm - Index

Part
Number

Units

Description

7-1

Monitor (includes I/O cable)

-2

Stand (included with monitor)
EQ = Equatorial
NH = Northern hemisphere
SH = Southern hemisphere
LV = Low Voltage
HV = High Voltage
UV = Universal Voltage (auto-sense)

See the Appendix B, "Model/Monit-or Configs and FRU Part Numbers" on page B1 for model specifications.

For monitors sold separately from IBM Aptiva system units, see the service information provided with the monitor. EMEA uses Express Repair for Monitors.

14-Inch Monitor - Type 6542
(12.3-Inch diagonal viewing area)
(P1438-G40) SVGA Monitor

-1

96G3108

1

.28,100/240V 50/60Hz, NH/UV

-1

96G3109

1

.28,100/240V 50/60Hz, EQ/UV

14-Inch Monitor - Type 6542
(13.0-Inch diagonal viewing area)
(P1458-G41) SVGA
Multi-Synch Monitor

-1

96G3110

1

-.28,100/127V 50/60Hz, NH/LV

-1

96G3111

1

-.28,200/240V 50/60 Hz, NH/HV

-1

96G3112

1

-.28,100/240V 50/60Hz, NH/UV

-1

96G3114

1

-.28,100/240V 50/60Hz, EQ/UV

-1

96G3113

1

-.28,100/240V 50/60Hz, SH/UV

15-Inch Monitor - Type 6543
(13.4-Inch diagonal viewing area)
(P1558-G50) SVGA
Multi-Synch Monitor

-1

96G3115

1

-.28,100/127V 50/60Hz, NH/LV

-1

96G3116

1

-.28,200/240V 50/60Hz, NH/HV

-1

96G3117

1

-.28,100/240V 50/60Hz, NH/UV

-1

96G3120

1

-.28,100/240V 50/60Hz, NH/UV

-1

96G3119

1

-.28,100/240V 50/60Hz, EQ/UV

-1

96G3118

1

-.28,100/240V 50/60Hz, SH/UV

17-Inch Monitor - Type 6543
(15.7-Inch diagonal viewing area)
(P1558-G70) SVGA
Multi-Synch Monitor

-1

96G3121

1

-.28,100/240V 50/60Hz, NH/UV

-1

96G3124

1

-.28,100/240V 50/60Hz, NH/UV

-1

96G3123

1

-.28,100/240V 50/60Hz, EQ/UV

-1

96G3122

1

-.28,100/240V 50/60Hz, SH/UV

Power Cord (linecord) for monitor and system unit

14F0032

1

Arabic countries

93F2365

1

Australia

13F9978

1

Belgium (Dutch)

13F9978

1

Belgium (French)

93F2366

1

Brazil

13F9978

1

Bulgaria

93F2364

1

Canada (English)

93F2364

1

Canada (French)

13F9978

1

Czech Republic

13F9996

1

Denmark

13F9978

1

Finland

13F9978

1

France

13F9978

1

Germany

13F9978

1

Greece

13F9978

1

Hungary

14F0086

1

Israel

14F0068

1

Italy

93F2366

1

Latin America (Spanish)

13F9978

1

Netherlands

93F2365

1

New Zealand

13F9978

1

Norway

13F9978

1

Poland

13F9978

1

Portugal

13F9978

1

Romania

13F9978

1

Russia

13F9978

1

Serbia

13F9978

1

Slovakia

14F0014

1

South Africa

13F9978

1

Spain

13F9978

1

Sweden

14F0050

1

Switzerland (French)

14F0050

1

Switzerland (German)

14F0050

1

Switzerland (Italian)

13F9978

1

Turkey

14F0032

1

UK/Ireland

93F2364

1

U.S.

13F9978

1

Yugoslavia/
Latvia

Power cords for the following countries are controlled in those countries.

Bangladesh, Brunei, China,
Hong Kong, Indonesia, Macau, Malaysia,
Myanmar, Philippines, Singapore, Sri Lanka, Thailand
