3517 SCSI Multi-Storage Expansion Enclosure - System parts listing
Applicable to: World-Wide
Service Information:

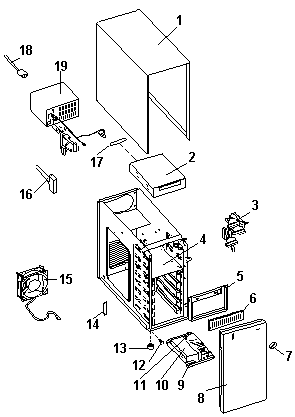

Parts Listing (3517):
|
Index: |
Description |
FRU P/N: |
|
1. |
Top Cover Assembly |
05H4680 |
|
Screws, Top Cover Assembly (4x) |
27H2338 | |
|
2. |
4GB/8GB 4-mm Tape Drive |
16G8454 |
|
Screws, 4-mm Tape Drive (4x) |
27H2338 | |
|
4GB/10GB 4mm 5.25" Int. SCSI DAT Tape Drive |
59H3536 | |
|
3. |
SCSI Cable Internal |
05H4827 |
|
Screw-locks, SCSI Cable (2x) |
27H0863 | |
|
Cable Tie |
1159519 | |
|
4. |
Backplane Assembly |
26H9180 |
|
Screws, Backplane Assembly (8x) |
27H0840 | |
|
5. |
Control Panel Assembly |
26H9191 |
|
6. |
Blank Media-Bay Panel |
06H2187 |
|
7. |
IBM Logo |
44H7627 |
|
8. |
Front Cover Assembly |
26H9206 |
|
9. |
16-Bit Power Carrier Hot-Swap Hard Disk Drive |
06H8631 |
|
Screws, Hot Swap HDD to Carrier (4x) |
1147429 | |
|
10. |
16-Bit 1.1GB Hot-Swap Hard Disk Drive |
06H8560 |
|
16-Bit 2.2GB Hot-Swap Hard Disk Drive |
06H8561 | |
|
16-Bit 4.5GB Hot-Swap Hard Disk Drive |
06H8563 | |
|
11. |
Cable, 16-Bit Address Disk Drive to Carrier |
06H7691 |
|
12. |
Latch |
26H9207 |
|
13. |
Feet (4x) |
26H9234 |
|
Screws, Feet (4x) |
49G5445 | |
|
14. |
Blank SCSI Panel |
27H0862 |
|
Screws, Blank SCSI Panel (2x) |
27H2338 | |
|
15. |
Fan Assembly Includes Isolators and Finger Guard |
27H0922 |
|
Cable Tie |
1159519 | |
|
16. |
SCSI Fast/Wide 1x Cable |
06H3231 |
|
SCSI Wide 1x Cable |
70G9857 | |
|
17. |
Interposer, 2x25 to 68 Pin |
92F0324 |
|
18. |
Power Cord |
See "Power Cable" |
|
19. |
Power Supply |
26H9205 |
|
Screws, Power Supply (4x) |
34H8186 | |
|
Screws, Power Switch (2x) |
34H8186 | |
|
Cable Tie |
1159519 |
|
