IBM PC - System board power supply connections
Applicable to: World-Wide

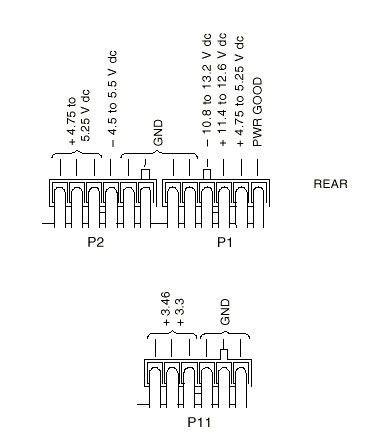

PC 300/700 Series System Board Power-Supply Connections:
If the computer you are servicing has a 20-pin power connector on the riser card or system board, see 20-Pin Main Power Supply Connection.
Note: These voltages must be checked with the power supply cables connected to the system board.
If the voltages are not correct, and the power cord is good, replace the power supply.
If the voltages are correct, and the computer you are servicing has a power supply connector on the riser card,check the following riser card voltages.

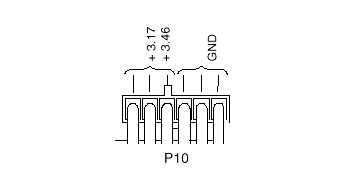

Riser Card Connection:
Note: These voltages must be checked with the power supply cable connected to the riser card.
If the voltages are not correct, and the power cord is good, replace the power supply.
|
