Service Hints & Tips |
Document ID: DETR-3UQRPA |

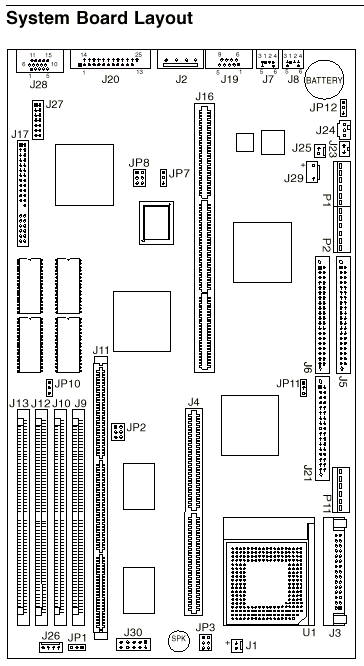

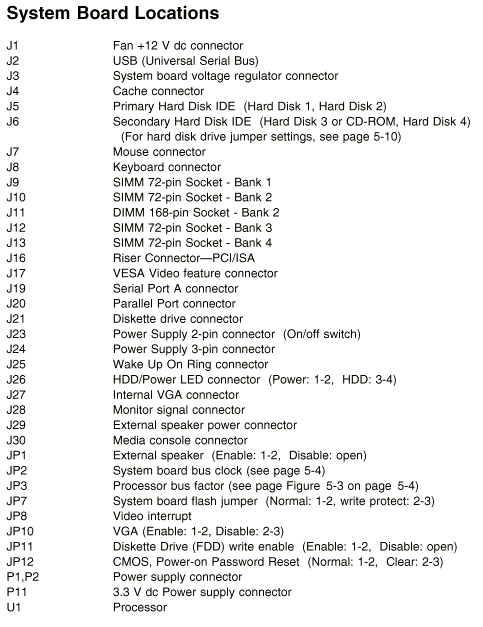

Aptiva - 2159 System board layout and locations
Applicable to: World-Wide
|
Search Keywords |
| |
|
Hint Category |
System Boards, Hardware Installation/Configuration, Jumper/Switch Settings | |
|
Date Created |
22-05-98 | |
|
Last Updated |
15-03-99 | |
|
Revision Date |
15-03-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2159 | |
|
Model |
all | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
