TP 390,390E,1720 - LCD Panel ASM Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.


To remove the LCD Panel ASM:

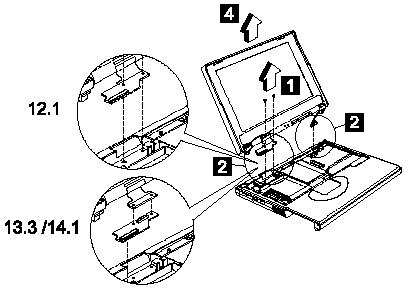

1. Remove the two screws securing the LCD FPC cable.

2. Remove the LCD FPC cable.

3. Disconnect the LCD FPC cable from the lower case (12.1").

Disconnect the LCD FPC cable and LVDS board (13.3" and 14.1").

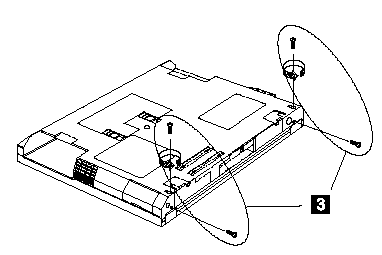

4. Turn the notebook over; then remove four screws securing the LCD Panel ASM as shown.

5. Pull out the LCD Panel ASM.

Step

Size (Quantity)

Head &
Color

Torque

2

M2.5 x 10L
(1)
M2 x 4L (1)

Pan head,
silver
Pan head,
black

12.1"L 1.6 kgf-cm
12.1"R 1.6kgf-cm

2

M2.5 x 18L
(1)
M2 x 10L (1)

Pan head,
silver
Pan head,
silver

13.3" and 14.1"
L:1.6 kgf-cm
R:1.6 kgf-cm

3

M2.5 x 6L (4)

Flat head,
black

3.5 kgf-cm


Note: Make sure you use the correct screw for replacement.
